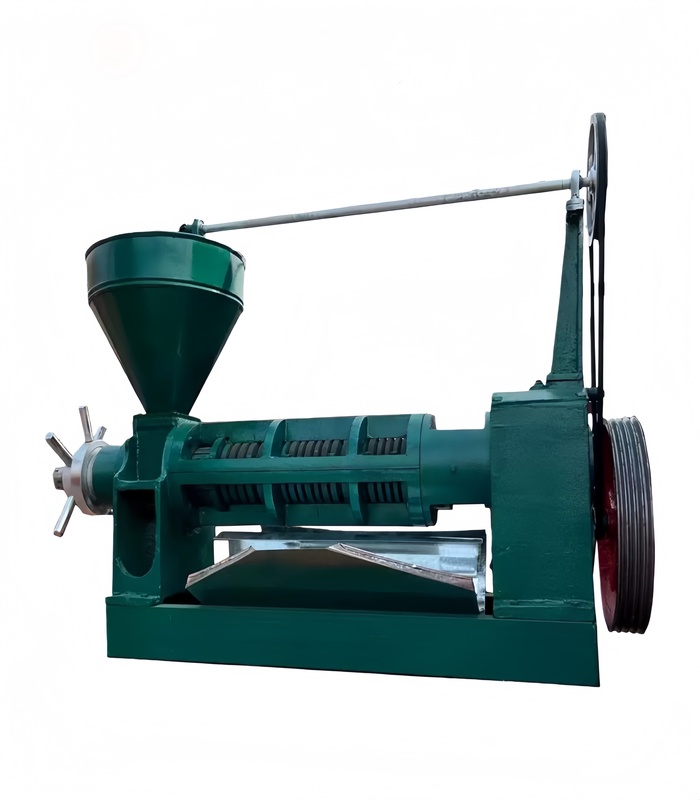

6YL-100 Oil Press

The 6YL-100 Oil Press is a heavy-duty, industrial-grade screw press engineered for continuous, high-volume oil extraction. Designed for reliability and maximum oil yield, it features a robust 100mm diameter worm shaft and a powerful 7.5kW motor, making it the ideal core machine for small to medium-sized oil milling plants, farm co-ops, and commercial processing facilities. It excels at pressing a wide range of oil seeds, including sesame, peanut, sunflower, rapeseed, cottonseed, and more, delivering exceptional efficiency with a remarkably low residue rate.

Key Features & Benefits

• High Capacity & Efficiency: Process 250-300 kilograms per hour, achieving a daily output of 5 to 7 metric tons. Maximize your production with continuous, stable operation.

• Superior Oil Yield: Advanced pressing technology ensures a residue rate of less than 6.5% in the cake, extracting more oil from your raw materials and boosting profitability.

• Robust & Durable Construction: Built with a heavy-duty 100mm worm shaft operating at an optimal speed of 30-40 RPM. This ensures strong pressing force, generates less heat, and preserves oil quality while ensuring long service life.

• Powerful & Reliable Drive: Equipped with a 7.5kW three-phase motor (380V) for consistent torque and the ability to handle hard oil seeds without stalling.

• Compact Industrial Design: Machine dimensions (1900x610x770mm) are optimized for a small footprint. The total packed size (2120x610x800mm) ensures cost-effective shipping and easy workshop layout planning.

• Heavy-Duty Build Quality: With a substantial Net Weight of 580 kg (Gross Weight: 620 kg), the press offers unmatched stability and vibration-free operation during high-pressure extraction.

Technical Specifications

• Model: 6YL-100 (Screw Oil Press)

• Processing Capacity: 5-7 Tons per Day (250-300 kg/hour)

• Motor Power: 7.5 kW / Three-Phase 380V

• Oil Residue in Cake: < 6.5%

• Worm Shaft Speed: 30-40 Revolutions per Minute (r/min)

• Worm Shaft Diameter: 100 mm

• Machine Dimensions (LWH): 1900 x 610 x 770 mm

• Packing Dimensions (LWH): 2120 x 610 x 800 mm

• Net Weight: 580 kg

• Gross Weight: 620 kg

Ideal For Processing:

• High-Oil Content Seeds: Sesame, Peanuts, Sunflower Seeds, Rapeseed (Canola), Copra.

• Medium-Oil Content Seeds: Cottonseed, Soybeans, Flaxseed, Hemp Seed.

• Other Oil-Bearing Nuts & Kernels.

Packing & Delivery

The machine is securely packaged in a robust wooden crate or steel frame for full export readiness. All electrical components and moving parts are protected to guarantee safe arrival. Ready for worldwide shipping.
