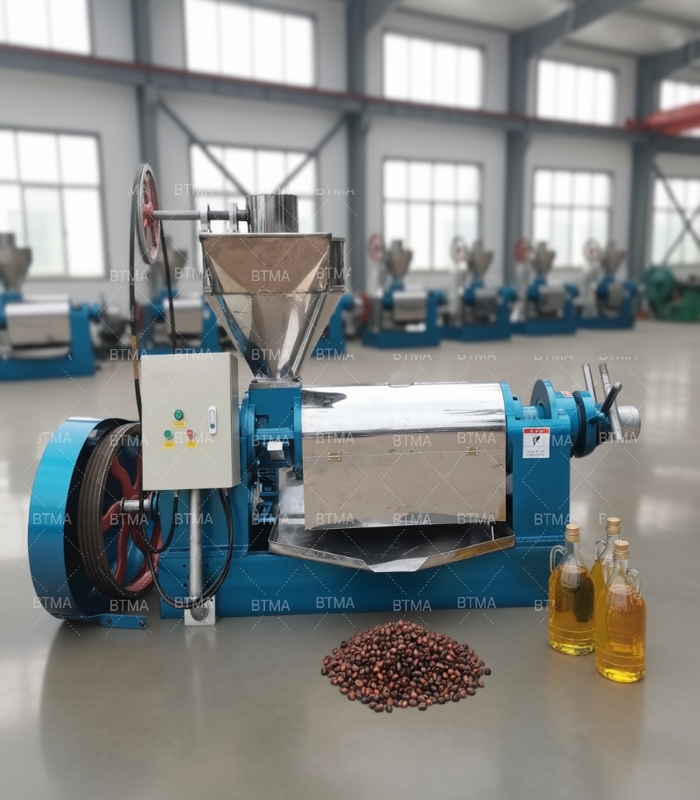

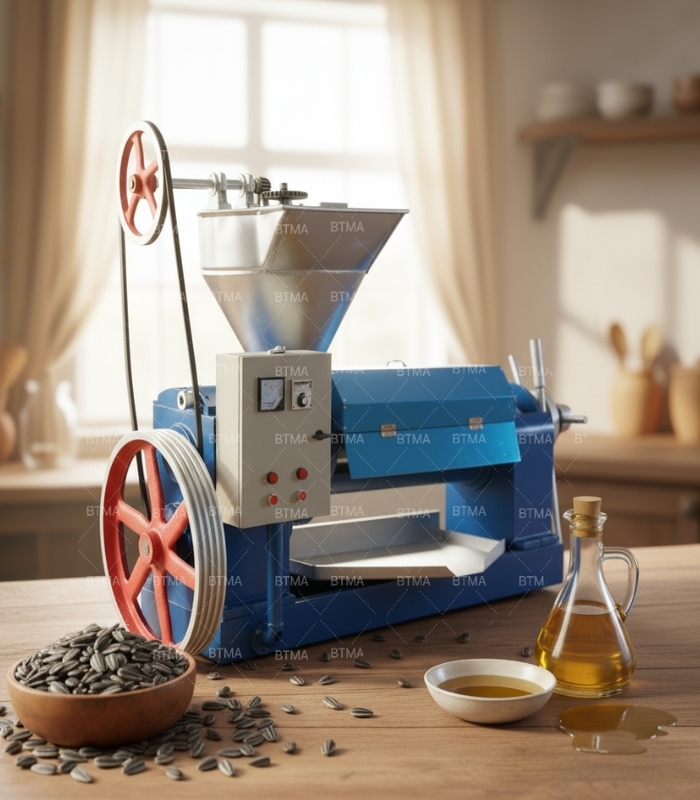

6YL – 130 Oil Press

High-Efficiency, Heavy-Duty Oil Extraction for Profitable Processing

Maximize your oil production output with the 6YL-130 Oil Press Machine, an industrial-grade powerhouse engineered for continuous, high-volume processing. Designed for pressing a wide range of oil seeds (like soybean, peanut, rapeseed, cottonseed, sunflower, and corn germ), this press delivers exceptional efficiency and reliable performance for plant owners and commercial processors. Its robust 130mm worm shaft ensures deep-press extraction, achieving a remarkably low residue rate of less than 6.5% to maximize your oil yield and profitability.

Core Features & Technical Specifications

Unmatched Performance & Reliability:

• High-Capacity Processing: Produce 10-12 tons per day with a steady output of 500-600 kg per hour, meeting the demands of growing businesses.

• Powerful & Efficient Drive: Equipped with a robust 18.5kW, 380V 3-phase motor for consistent torque and energy-efficient operation under continuous load.

• Precision Engineered Worm Shaft: Features a large Φ130mm hardened alloy steel worm rotating at an optimal 35-39 RPM. This ensures thorough pressing, higher oil yield, and reduced wear for longer service life.

• Superior Oil Recovery: Advanced press chamber design guarantees a residual oil rate in cake below 6.5%, extracting more valuable oil from your raw materials.

Robust Build for Industrial Use

Built for durability, the 6YL-130 features a heavy-duty cast iron and steel construction. Its compact footprint (2560x610x800mm) saves valuable floor space, while its substantial net weight of 760 kg ensures vibration-free stability. The machine arrives securely packaged (Gross Weight: 800 kg) for safe shipment and is ready for integration into your production line.

Technical Specifications at a Glance:

• Model: 6YL-130

• Capacity: 500-600 kg/h (10-12 T/24h)

• Motor Power: 18.5 kW / 380V, 3-Phase

• Residual Oil in Cake: < 6.5%

• Worm Shaft Diameter: 130 mm

• Shaft Speed: 35-39 r/min

• Machine Dimensions (LxWxH): 2560 x 610 x 800 mm

• Net Weight: 760 kg

• Gross Shipping Weight: 800 kg
