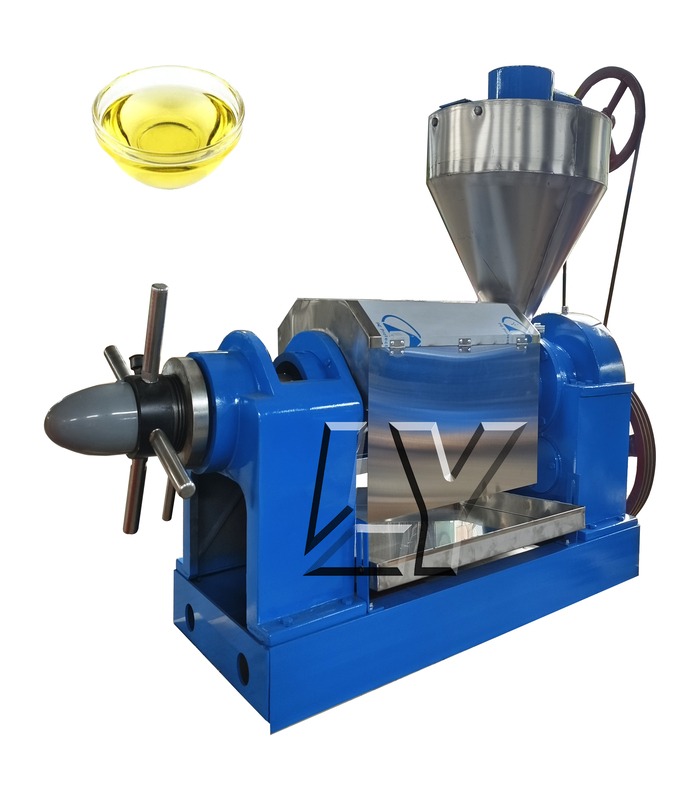

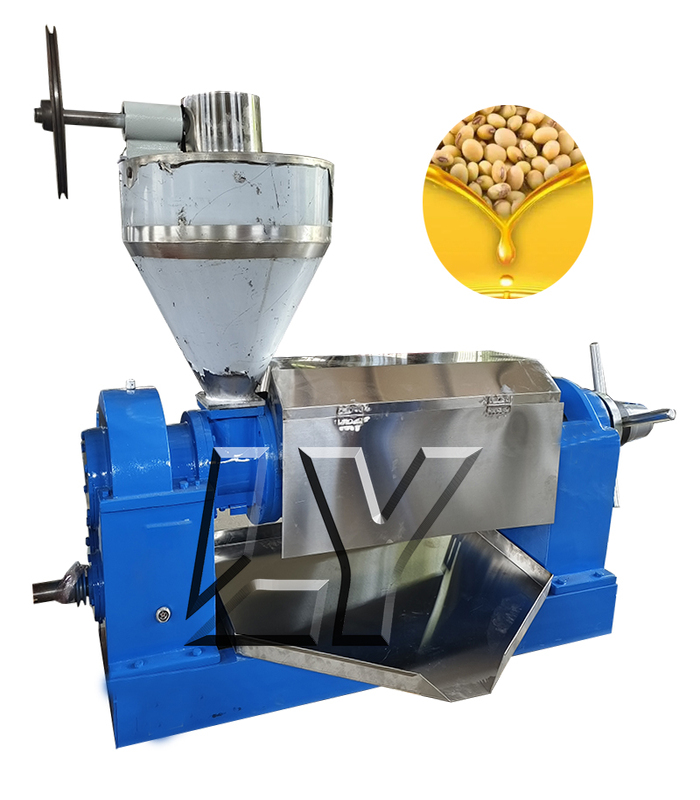

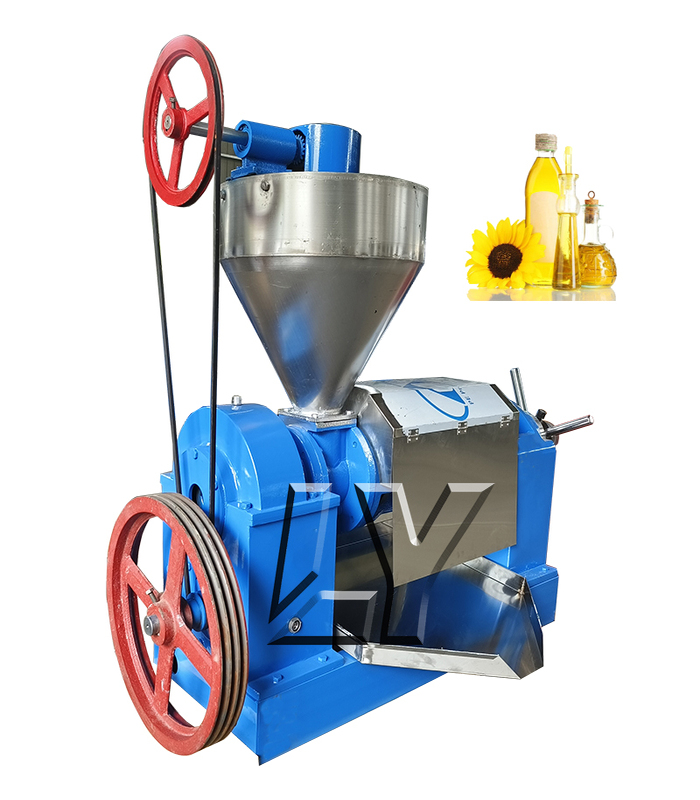

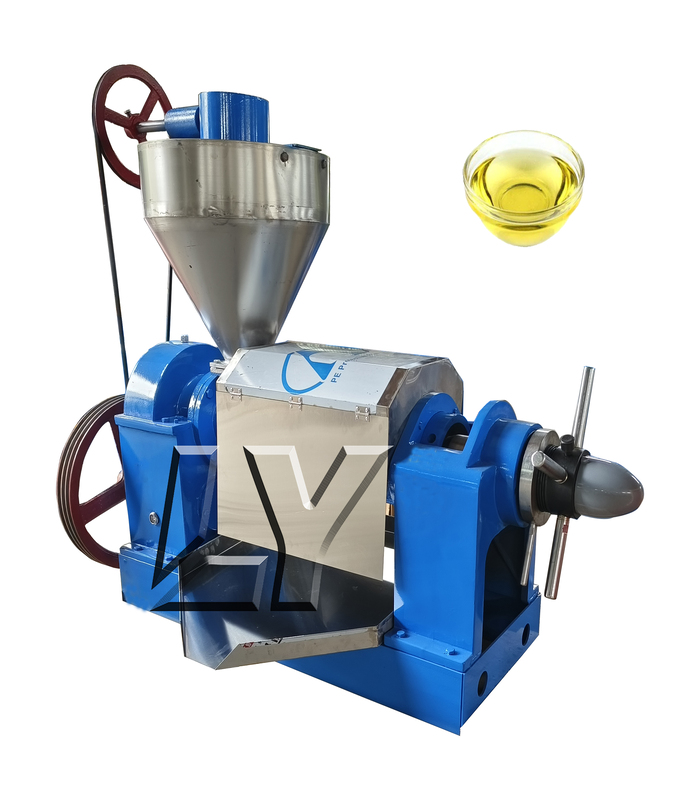

6YL-95A oil Press

The 6YL-95A Integrated Automatic Oil Press is a robust, all-in-one solution designed for entrepreneurs, small farms, and homesteaders seeking to produce pure, high-quality edible oils on a commercial scale. This versatile machine combines pressing and preliminary filtration in a single unit, streamlining the process from raw seeds to fresh oil. Its durable cast iron construction and automatic temperature control ensure consistent performance for both hot pressing (maximum oil yield) and cold pressing (premium quality oil).

Key Features & Benefits:

• High Efficiency & Integrated Design: Features a built-in oil filter, eliminating the need for a separate filtering unit. This space-saving design delivers cleaner oil directly from the press, reducing workload and time.

• Automatic Electric Heating: The integrated heating ring allows precise temperature control (adjustable via thermostat). Optimal temperature ensures higher oil yield, easier pressing for harder nuts, and consistent results regardless of ambient conditions.

• Versatile Oil Seed Compatibility: Engineered to process a wide variety of oil-bearing seeds and nuts, including:

  • Soft Oil Seeds: Sesame, Peanut, Sunflower, Rapeseed, Hemp Seed.

  • Medium-Hard Nuts: Coconut (copra), Cottonseed, Soybean, Pumpkin Seed.

  • Note: For very hard nuts (e.g., almonds) or high-oil-content seeds, pre-treatment (roasting/flaking) is recommended for best results.

• Durable & Low Maintenance: Constructed with a high-strength cast iron body and hardened steel screw press. Designed for continuous operation with easy disassembly for cleaning and maintenance.

• User-Friendly Operation: Simple “press-and-filter” automatic operation. Includes a clear feeding hopper, adjustable cake outlet for controlling oil cake thickness, and a seamless oil collection system.

Technical Specifications:

• Model: 6YL-95A (Integrated Type)

• Capacity: 7-9 kg/hour (varies by seed type and pre-treatment)

• Power: 4.0 kW (Heating) + 3.0 kW (Motor) = 7.0 kW Total

• Voltage: Standard 220V/110V, 50/60Hz (Customizable for 380V 3-Phase)

• Screw Speed: ~35 rpm (low speed for high pressure and oil yield)

• Heating System: Electric Heating Ring with Thermostat

• Main Body Material: High-Grade Cast Iron

• Weight: ~155 kg

• Residual Oil in Cake: Typically <7%, depending on material and adjustment.

Ideal For:

• Small-scale commercial edible oil production

• On-farm processing for direct sales

• Specialty and gourmet oil shops (e.g., sesame oil, coconut oil)

• Health food stores and restaurants producing fresh oil

• DIY enthusiasts and homesteaders

What’s in the Box?

• 1 x 6YL-95A Main Press Machine

• 1 x Electrical Control Box with Thermostat

• 1 x Set of Tools

• User Manual & Safety Instructions
