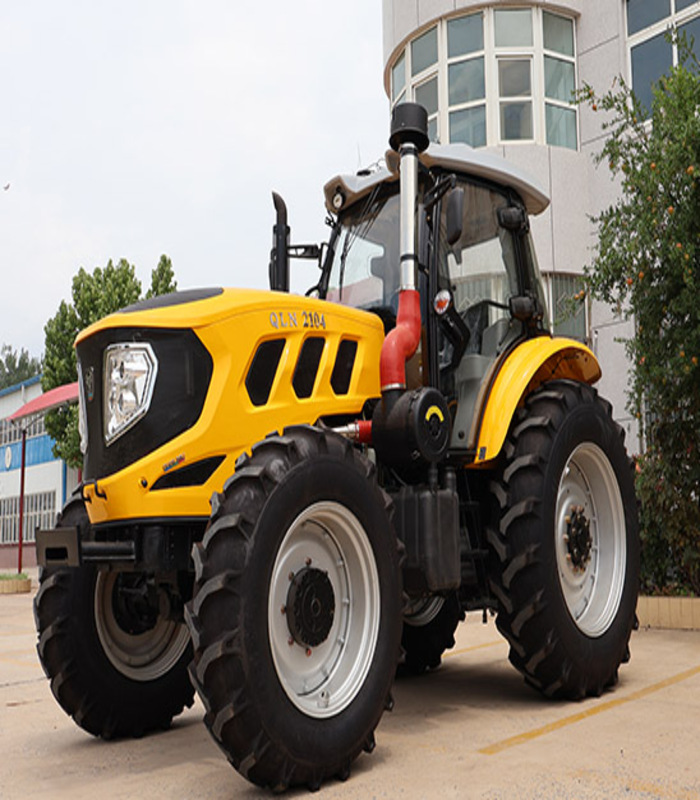

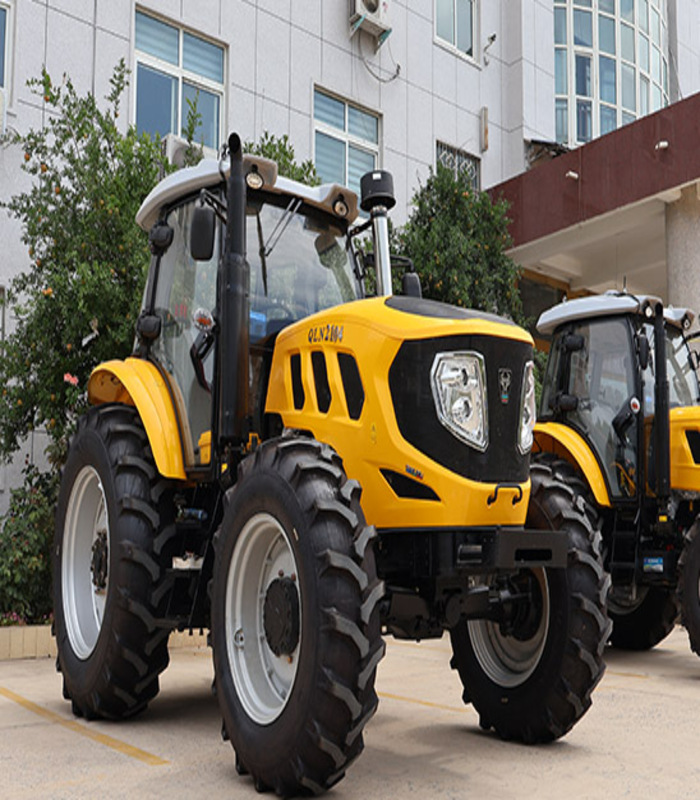

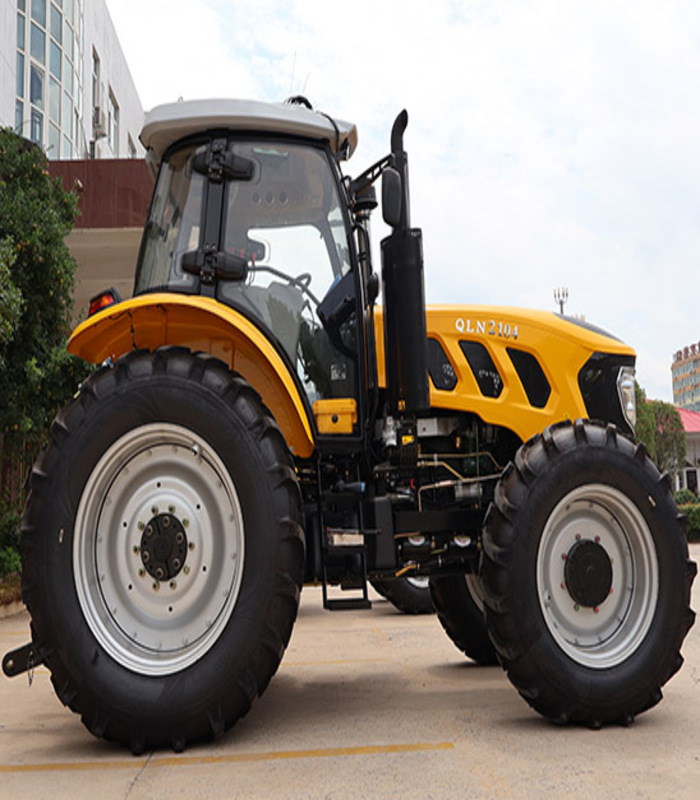

This 210hp tractor belongs to our QC series tractor, it has with YTO engine and YTO 14-inch double-acting clutch, its torque coefficient is large and the transmission ability is strong. and for this tractor clutch, we use hydraulic boost clutch, which is easy for the operator to operate.
Products Parameters
| 210HP | |||
|---|---|---|---|
| Model | QLN-2104B | ||
| Engine | Rated power(kw) | 155 | |
| Type | Direct-injection,water-cooled 6-cylinder diesel engine | ||
| Rotation speed(r/min) | 2200 | ||
| Dimension | Wheel drive | 4*4 | |
| Minimum using weight (kg) | 5800 | ||
| Overall dimension(mm) | 5240**2345*2920 | ||
| Wheel tread(mm) | Front wheel | 1850-1940 | |
| Rear wheel | 1870-1996 | ||
| Wheelbase(mm) | 2727 | ||
| Minimum ground clearance(mm) | 480 | ||
| Gearbox | 16F+8R | ||
| Tire | Front tire | 14.9-28（13.6-24/18.4-34 ） | |
| Rear tire | 18.4一38（14.9-26/18.4-34 ） | ||
| Steering type | Hydraulic power steering | ||
| Working device | PTO shaft speed (r/min) | 760/850 | |
| Max lifting force(KN) | 37.2 | ||
| Suspension type | 3 Point linkage（CAT.3,Draft,position adjustable and Floating control | ||
