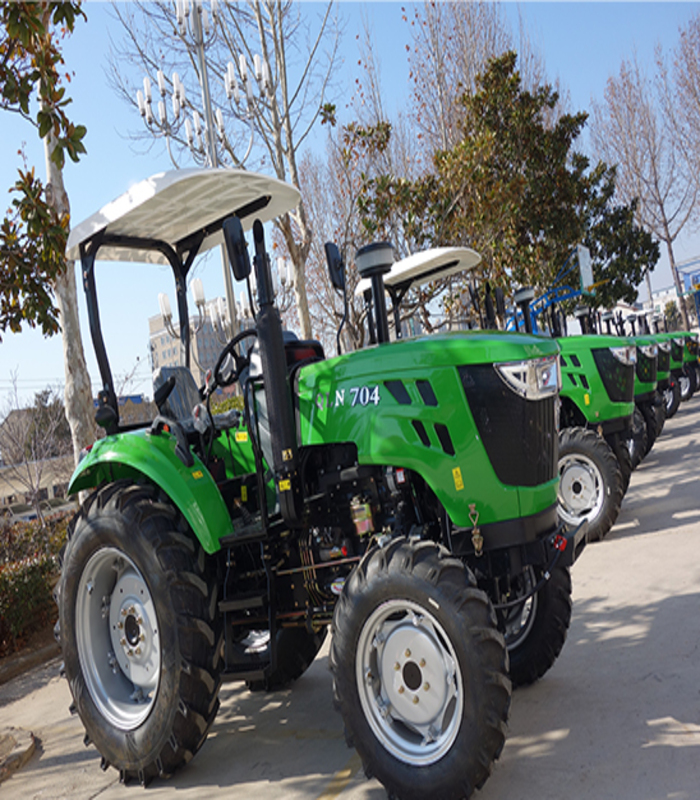

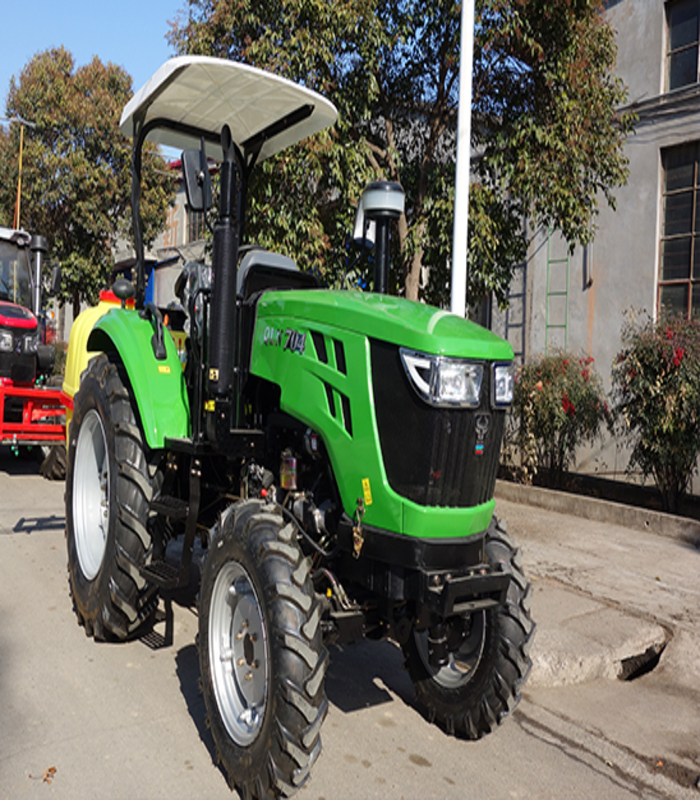

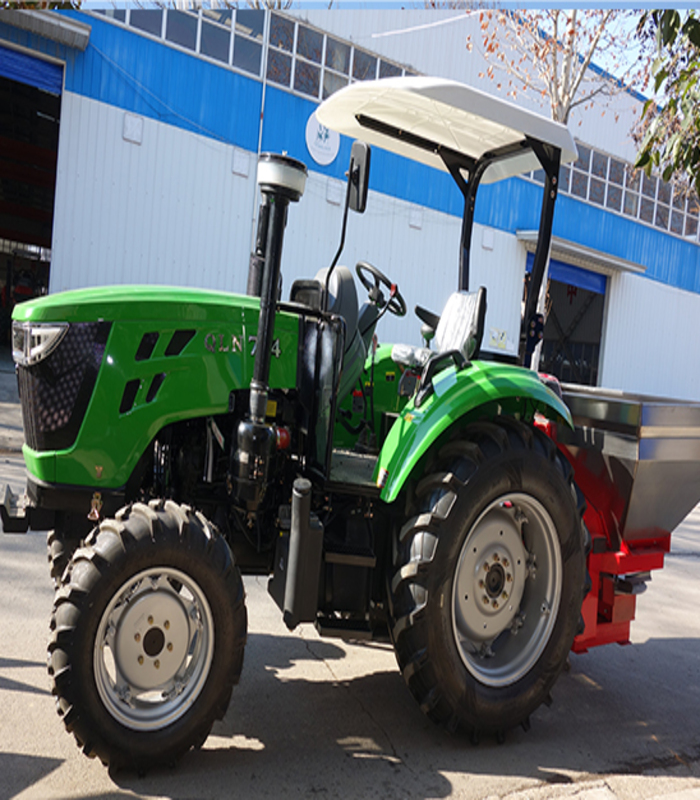

QB series 70HP Wheeled Tractor is belong to middle horsepower, adopts YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gearbox, lower mounted fuel tank with large capacity, heavy chassis, and fast operating speed.
This middle horsepower tractor mostly uses in middle-size farms, And also it can use in some Mechanical engineering.
Products Parameters
| 70HP | ||||
|---|---|---|---|---|
| Model | QLN-700 | QLN-704 | ||
| Engine | Rated power(kW) | 51.5 | ||
| Type | Water-cooled, in-line, four-stroke, direct injection | |||
| Rotation speed(r/min) | 2400 | |||
| Dimension | Wheel drive | 2WD | 4WD | |
| Minimum using weight (kg) | 2120 | 2360 | ||
| Overall dimension(mm) | 3980*1635*2400 | |||
| Wheel tread(mm) | Front wheel | 1300 | ||
| Rear wheel | 1300 | |||
| Wheelbase(mm) | 2010 | 2040 | ||
| Minimum ground clearance(mm) | 325 | |||
| Gearbox | 12F+12R | |||
| Tire | Front tire | 6.00-16 | 8.3-20 | |
| Rear tire | 12.4-28 | 12.4-28 | ||
| Steering type | Hydraulic power steering | |||
| Working device | PTO shaft speed (r/min) | 540/760 | ||
| Max lifting force(KN) | 12.4 | |||
| Suspension type | Categoryâ… 3-point linkage | |||
