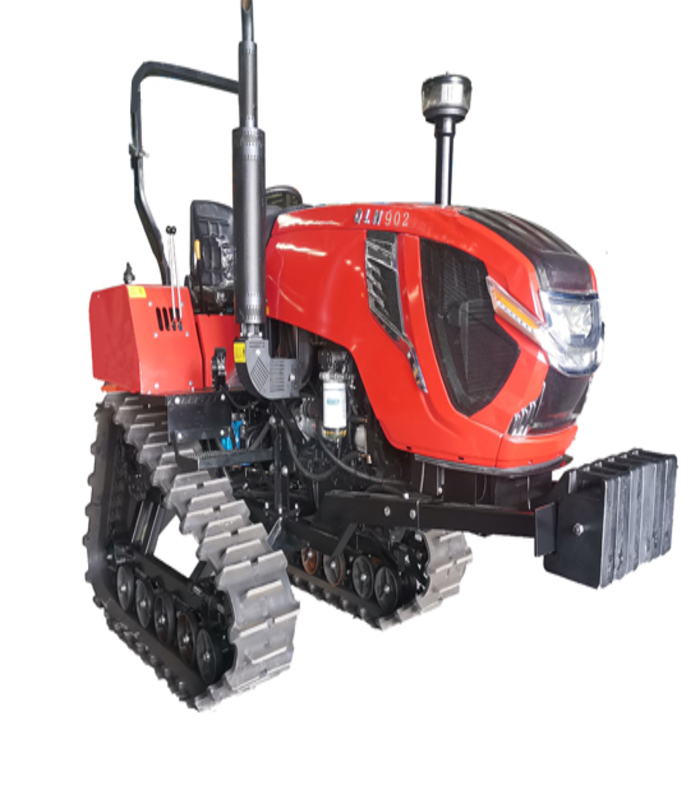

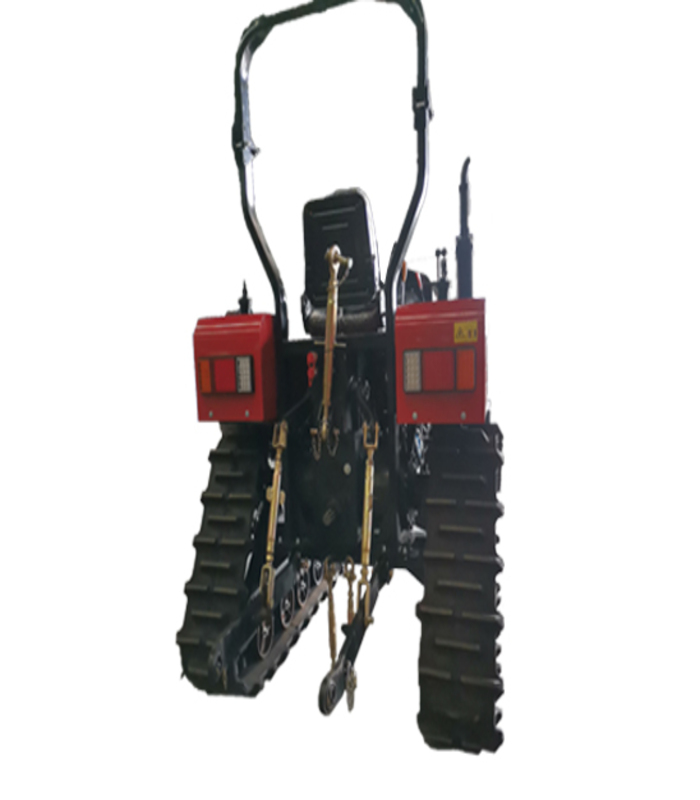

QLN 90/100hp crawler tractor adopts a YTO engine, mid-mounted balance trolley design, long service life, and stable and reliable performance. Triangular crawler layout, high ground clearance, especially suitable for paddy fields and mountainous areas; reinforced frame, good stability, various agricultural implements are interchangeable, large crawler grounding area, and low pressure.
Products Parameters
| 90HP | |||
|---|---|---|---|
| Model | QLN-902 | ||
| Overall dimension (L * W * H)(mm) | 3680*1570*2450 | ||
| Weight (kg) | 2610 | ||
| Minimum ground clearance (mm) | 465 | ||
| Gauge(mm) | 1150 | ||
| Track ground specific pressure(Kpa) | 26.3 | ||
| Engine | Model | YTO | |
| Type | Direct injection, vertical, water-cooling, four stroke， four cylinders | ||
| Rated power (KW) | 66.2 | ||
| Rated rotation speed (r/min) | 2400 | ||
| Starting type | Electric start | ||
| Track pitch section*number*width | 90*53*400 | ||
| Gearshift | 8F+8R | ||
| Lifting force(kg) | 800 | ||
| Power output shaft speed(r/min) | 720/1000 | ||
