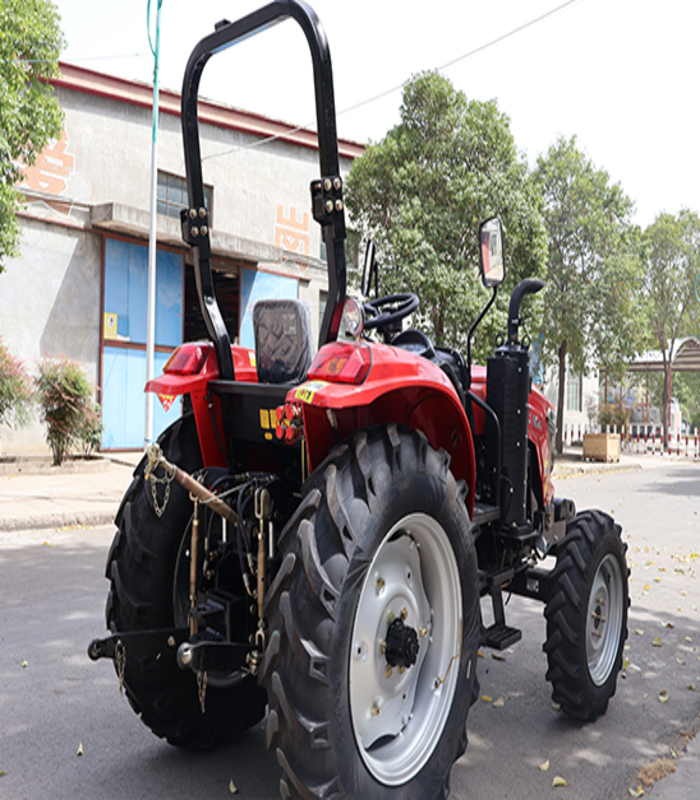

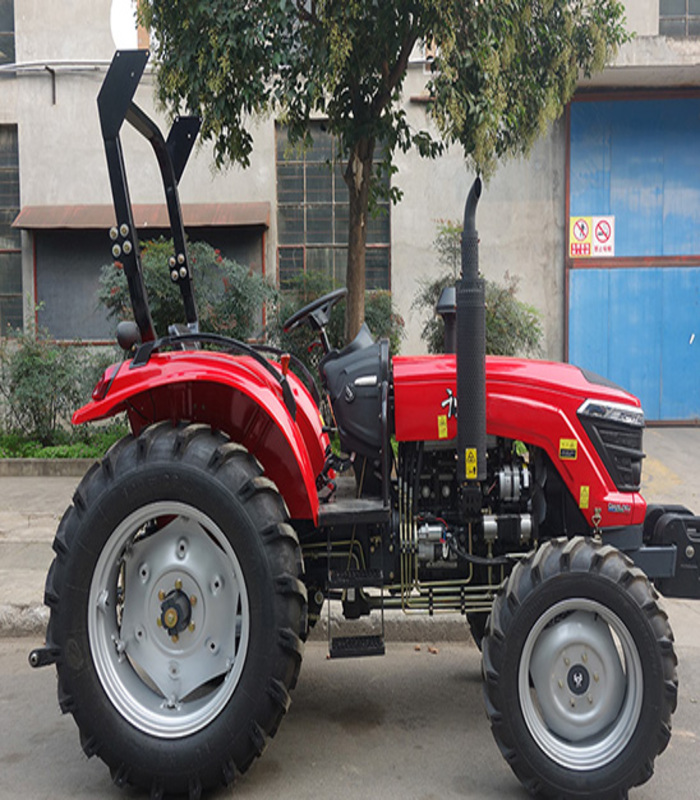

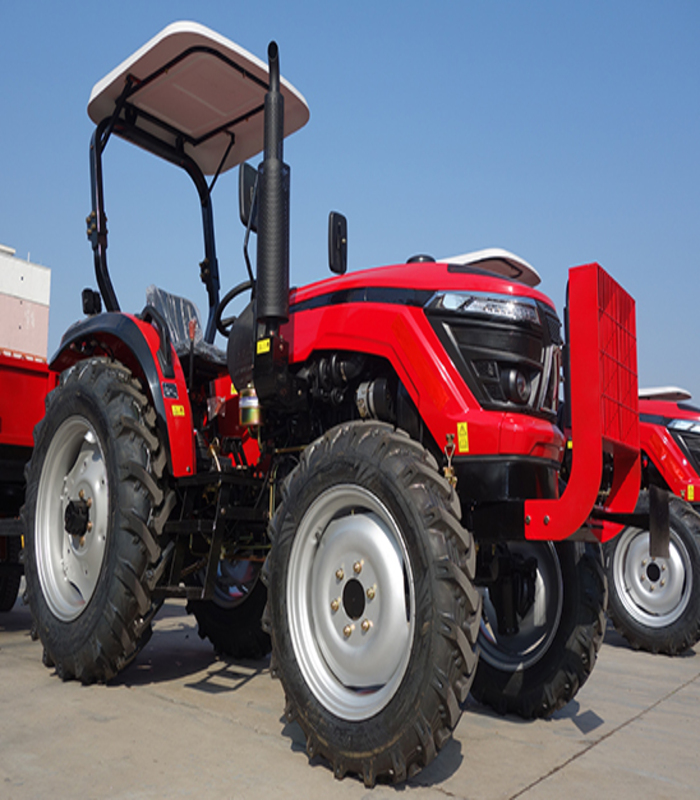

Farm QA series (50HP 60HP) tractors are equipped famous brand engine YTO/LAIDONG/YUNNEI, with good performance, low fuel consumption, and high economic efficiency.
1. This series of agriculture is suitable for market demand at home and abroad;
2. F8+R8/R2 shuttle shift, enhanced chassis;
3. These farm wheel tractors have reasonable gear distribution, reliable in performance;
4. Low fuel consumption and large torque reserve, dynamic economy;
5. Frame-type cab, good sealing, driving safety and comfort;
6. Multi-power output, good match with farm implements to meet the multiple requirements.
Products Parameters
| 50HP | |||
|---|---|---|---|
| Model | QLN-504 | ||
| Engine | Rated power(kw) | 31.3 | |
| Type | 4 Cylinders, water-cooled, diesel engine | ||
| Rotation speed(r/min) | 2300 | ||
| Dimension | Wheel drive | 4WD | |
| Minimum using weight | 1625 | ||
| Overall dimension(mm) | 3540*1560*2340 | ||
| Wheel tread(mm) | Front wheel | 1230 | |
| Rear wheel | 1110-1400 | ||
| Wheelbase(mm) | 1820 | ||
| Minimum ground clearance(mm) | 280 | ||
| Gearbox | F8+R8/R2 shuttle shift | ||
| Tire | Front tire | 7.50-16 | |
| Rear tire | 11.2-28 | ||
| Steering type | Hydraulic | ||
| Working device | PTO shaft speed (r/min) | 540/720 or 540/1000 | |
| Max lifting force (KN) | 10.5 | ||
| Suspension type | Categoryâ… 3-point linkage | ||
| 60HP | |||
|---|---|---|---|
| Model | QLN-604 | ||
| Engine | Rated power(kw) | 44.1 | |
| Type | 4 Cylinders, water-cooled, diesel engine | ||
| Rotation speed(r/min) | 2300 | ||
| Dimension | Wheel drive | 4WD | |
| Minimum using weight | 1625 | ||
| Overall dimension(mm) | 3540*1560*2340 | ||
| Wheel tread(mm) | Front wheel | 1230 | |
| Rear wheel | 1110/1400 | ||
| Wheelbase(mm) | 1820 | ||
| Minimum ground clearance(mm) | 280 | ||
| Gearbox | F8+R8/R2 shuttle shift | ||
| Tire | Front tire | 7.50-16 | |
| Rear tire | 11.2-28 | ||
| Steering type | Hydraulic | ||
| Working device | PTO shaft speed (r/min) | 540/720 or 540/1000 | |
| Max lifting force (KN) | 10.5 | ||
| Suspension type | Categoryâ… 3-point linkage | ||
