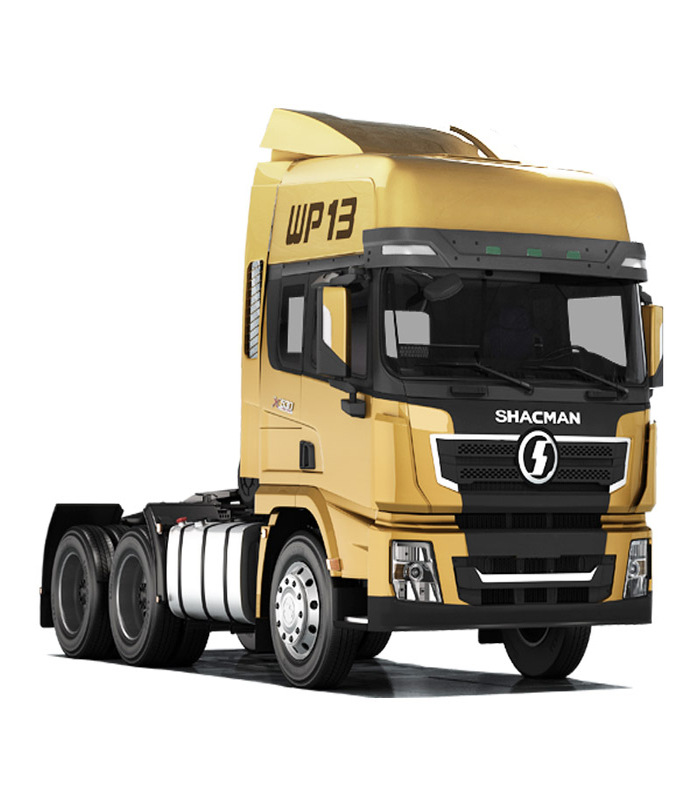

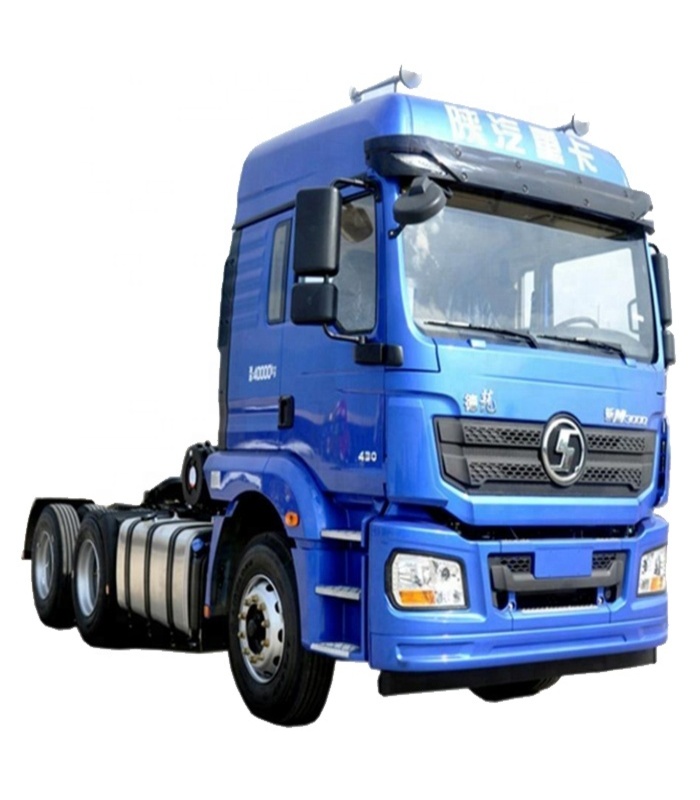

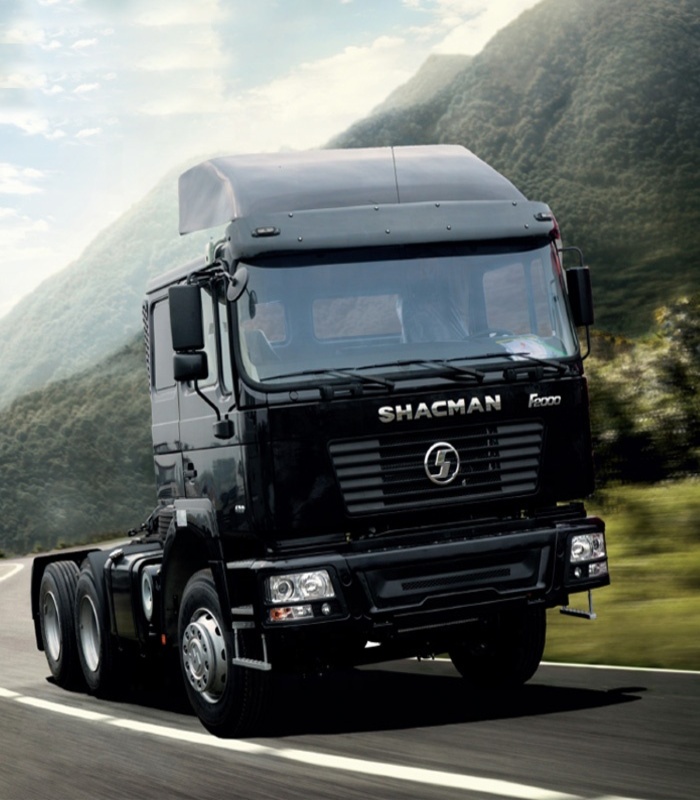

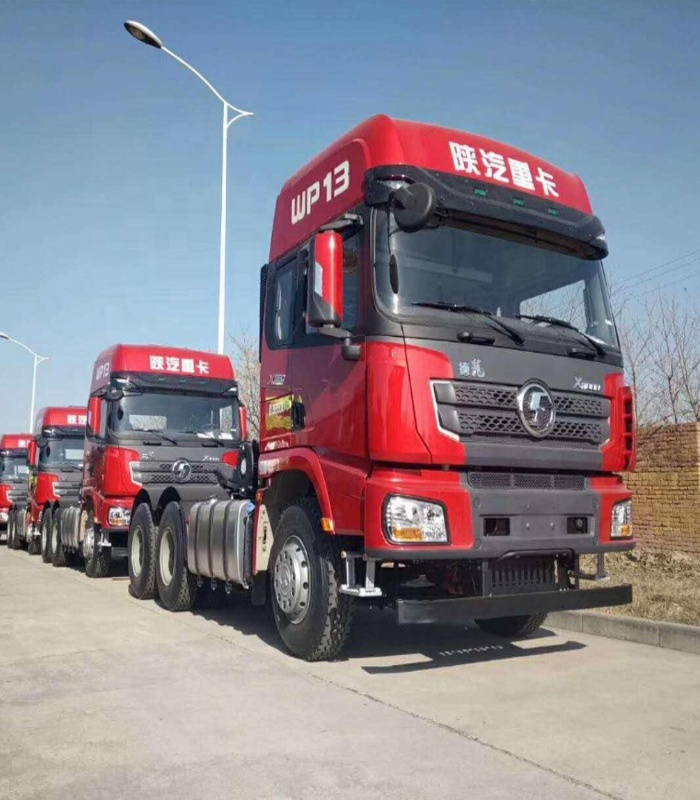

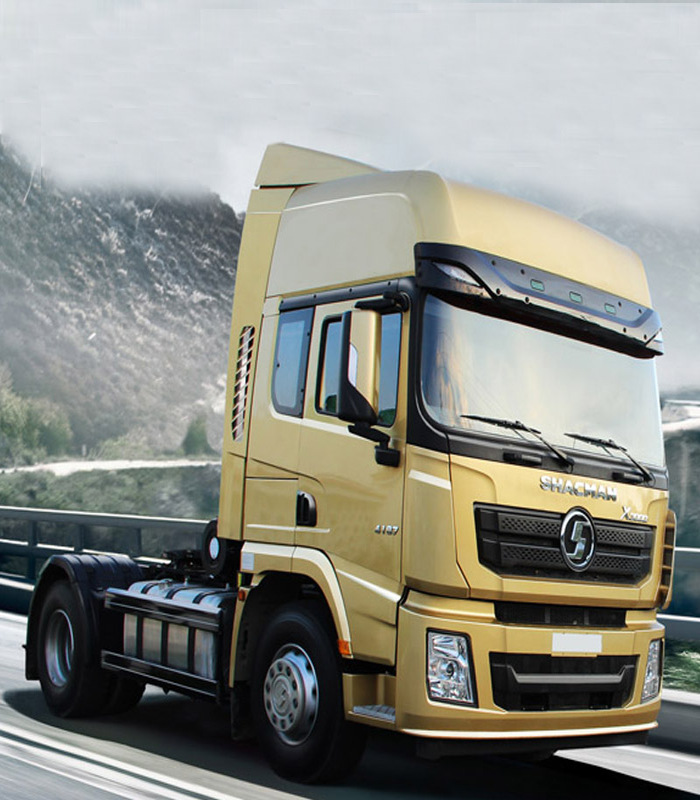

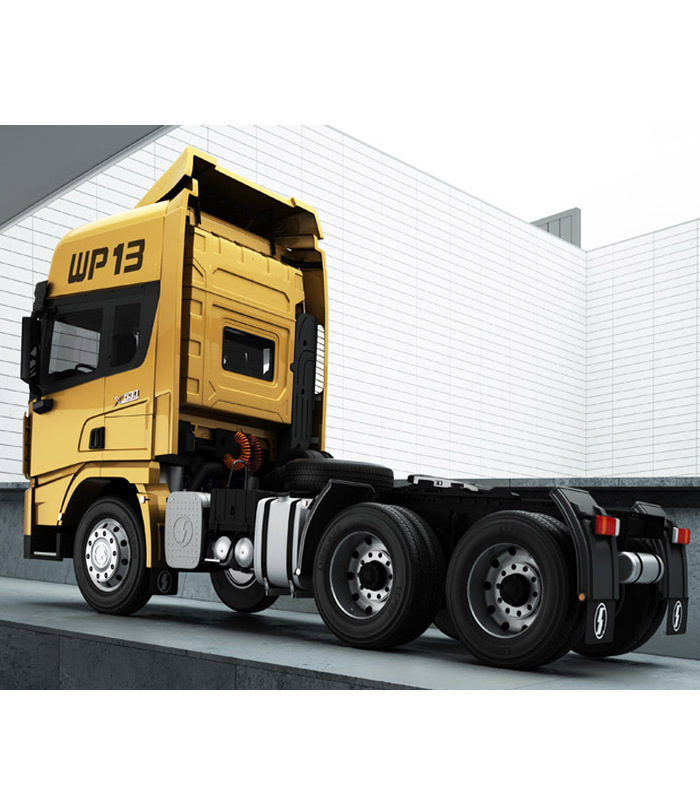

China Shacman X3000 Euro 4 Euro 5 Euro 6 Tractor Truck

The Shacman X3000 Tractor Truck represents the pinnacle of Chinese heavy-duty truck manufacturing, combining robust engineering with advanced emissions technology. As a flagship model in Shacman’s lineup, the X3000 is designed to meet the diverse needs of modern logistics, long-haul transportation, and heavy industrial applications. Available in 6×4 and 4×2 configurations, this truck is built to deliver exceptional power, fuel efficiency, and driver comfort while complying with the strictest global emissions standards through its Euro 4, Euro 5, and Euro 6 compliant variants .

Key Features & Benefits

1. Advanced Emissions Compliance (Euro 4, Euro 5, Euro 6)

The Shacman X3000 is engineered for the future, offering flexibility across different regulatory environments.

• Euro 4 & Euro 5 Models: Ideal for regions with developing infrastructure, these models utilize advanced high-pressure common rail fuel injection and optimized combustion chambers to balance raw power with reduced emissions .

• Euro 6 Models: Featuring the most advanced after-treatment systems (including Selective Catalytic Reduction and Diesel Particulate Filters), the Euro 6 variant is designed for markets with the strictest environmental laws. It cuts NOx emissions by up to 80% compared to Euro 4 models, ensuring operation in eco-sensitive zones and compliance with urban low-emission areas .

2. Powerful & Reliable Powertrain

At the heart of the X3000 lies a choice of world-class engines, ensuring the truck can handle the heaviest loads with ease.

• Engine Options: The truck is typically powered by a 6-cylinder in-line diesel engine from either Weichai Power or Cummins. Displacements range from 9.7L to 12.54L .

• Power Output: Horsepower ratings vary by application, spanning from 345 HP to 460 HP. Top-tier models deliver a massive 2000 Nm to 2500 Nm of torque, providing the grunt needed for steep inclines and rapid acceleration under full load .

• Fuel Efficiency: Optimized injection systems and aerodynamic cab designs contribute to superior fuel economy. The Euro 6 Pro Model boasts a 15% improvement in fuel efficiency over the base Euro 4 version, significantly lowering total cost of ownership .

3. Durable Chassis & Heavy-Duty Axles

Built to endure the harshest working conditions, the X3000 features a reinforced high-strength steel frame.

• Frame & Suspension: The frame (often 850mm x 300mm with 8+7mm thickness) ensures stability and durability even under maximum loads. Multi-leaf spring suspensions with stabilizer bars provide excellent load distribution and ride stability .

• Axle Configuration: The standard 6×4 drive configuration (with three axles, two driven) ensures maximum traction on rough terrain, making it ideal for construction sites and off-road routes. Front axles (MAN technology, 9.5T) and rear axles (16T MAN double reduction) are built for longevity and low maintenance .

• Stopping Power: Safety is paramount with a dual-circuit compressed air brake system, reinforced by an engine exhaust brake and optional WABCO ABS for confident stopping power in all conditions .

4. Driver-Centric “X3000” Cabin

Long-haul driving demands comfort, and the X3000 delivers with a spacious, modern interior.

• Spacious Interior: The extended flat-top cab (available with high roof) offers ample headroom. It features a air suspension driver’s seat (air master seat) and a comfortable sleeper berth (up to 90cm wide) to reduce driver fatigue .

• Luxury & Convenience: Standard equipment includes automatic temperature control air conditioning, power windows, central locking with remote control, and a multi-function steering wheel .

• Advanced Technology: The cabin features a four-point air suspension system to dampen road vibrations. Optional telematics (SHACMAN Telematics) and infotainment systems are available for fleet management and driver entertainment .

Technical Specifications (Typical Configuration)

Available Variants: Euro 4, Euro 5, and Euro 6 Comparison

To help you select the right model for your market, here is a comparison of the three emissions variants :

• Base Model (Euro 4): The workhorse for developing markets. It offers a cost-effective entry point with powerful performance (approx. 450HP) and a robust build, ideal for regions where emissions regulations are less stringent.

• Advanced Model (Euro 5): A balanced choice for mid-sized contractors. It typically features enhanced fuel efficiency (approx. 8% improvement over Euro 4) and may include basic safety upgrades, making it suitable for mixed urban and highway use.

• Pro Model (Euro 6): The high-tech flagship. It features the cleanest emissions (up to 40% cleaner than Euro 4), the best fuel economy (up to 15% improvement), and can include advanced safety features like collision avoidance and full fleet management telematics. Perfect for EU markets and eco-sensitive zones .

Applications

The Shacman X3000 Tractor Truck is a versatile asset suitable for a wide range of industries:

• Long-Haul Logistics: Transporting goods across continents with high fuel efficiency and driver comfort .

• Construction & Mining: Hauling heavy machinery and materials thanks to its robust chassis and powerful engine .

• Specialized Cargo: With customizable configurations, it can be adapted for tanker transport, flatbed hauling, or refrigerated containers .
