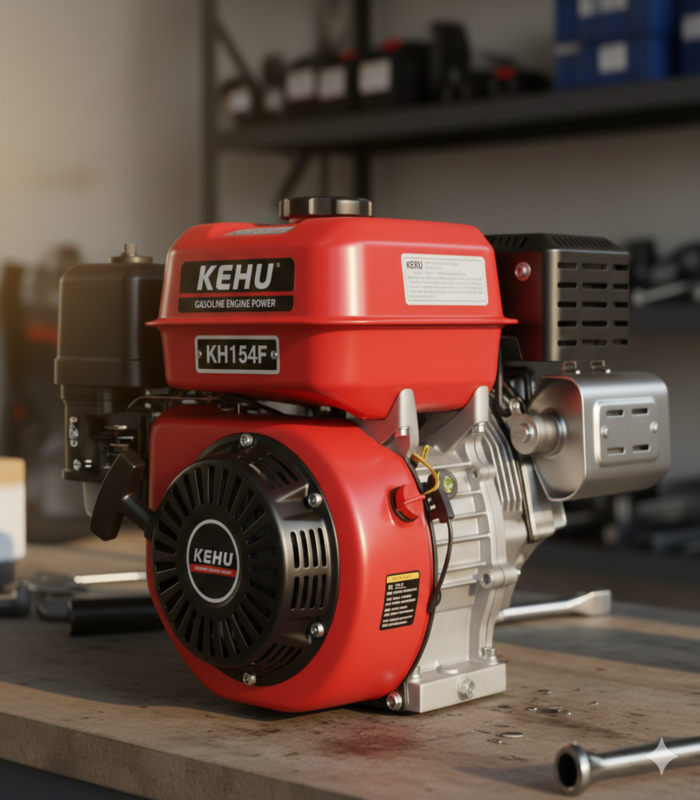

The Gasoline Engine Power KH154F is a robust, high-performance power unit designed to deliver reliable and efficient operation for a wide variety of outdoor power equipment and industrial applications. Built on the proven 154F engine platform, this model combines a compact, lightweight design with the durability of a four-stroke cycle, making it an ideal choice for both OEM manufacturers and end-users seeking a dependable power source .
Key Features and Benefits
-
Efficient Four-Stroke Design: The KH154F operates on a four-stroke cycle, utilizing pure gasoline without the need for mixing oil. This ensures cleaner combustion, lower emissions, and greater fuel efficiency compared to two-stroke alternatives. Its single-cylinder configuration is engineered for simplicity and longevity .
-
Reliable Cooling & Lubrication: Equipped with a forced air-cooling system (commonly referred to as “air-cooled”), the engine is designed to maintain optimal operating temperatures even under continuous load, preventing overheating and extending engine life .
-
Compact and Portable: With a displacement of 105ml and a net weight of only 9 kg, the KH154F is exceptionally lightweight and easy to handle. Its small footprint allows for flexible integration into various types of machinery without adding significant bulk .
-
Easy Starting: The engine features a reliable manual recoil start system (hand start) for quick and effortless ignition. The ignition system utilizes a maintenance-free transistorized magneto ignition, ensuring precise spark timing and reliable performance in various weather conditions .
Technical Specifications
To provide a clear understanding of its capabilities, here are the detailed parameters for the engine platform:
| Specification | Details |
|---|---|
| Engine Model | 154F |
| Engine Type | Single-cylinder, Four-stroke, Forced Air-cooling |
| Bore x Stroke | 54 x 46 mm |
| Displacement | 105 ml |
| Compression Ratio | 6:1 |
| Maximum Net Power | 1.3 kW / 3600 rpm |
| Maximum Torque | 4.2 N.m / 3000 rpm |
| Ignition System | Transistor Magneto Ignition |
| Starting System | Recoil Start (Hand Pull) |
| Fuel Tank Capacity | 1.2 L |
| Oil Capacity | 0.35 L |
| Fuel Consumption | ≤ 445 g/kW.h |
| Net Weight | 9 kg |
| Dimensions (L x W x H) | 289 x 270 x 345 mm |
Note: Specifications can vary slightly between different manufacturers and applications. For example, some assembled units using this engine may feature larger fuel tanks or different power outputs .
Typical Applications
The power and size of the KH154F make it incredibly versatile. It is commonly used as the primary power source for:
-
Mini-tillers and Cultivators: Perfect for garden preparation and soil management.
-
High-Pressure Power Washers: Provides the necessary power for effective cleaning.
-
Small Water Pumps: Ideal for irrigation, dewatering, and water transfer tasks.
-
Generators: Powers portable generator sets for backup electricity.
-
Recreational Equipment: Go-karts, mini-bikes, and other small recreational vehicles.
