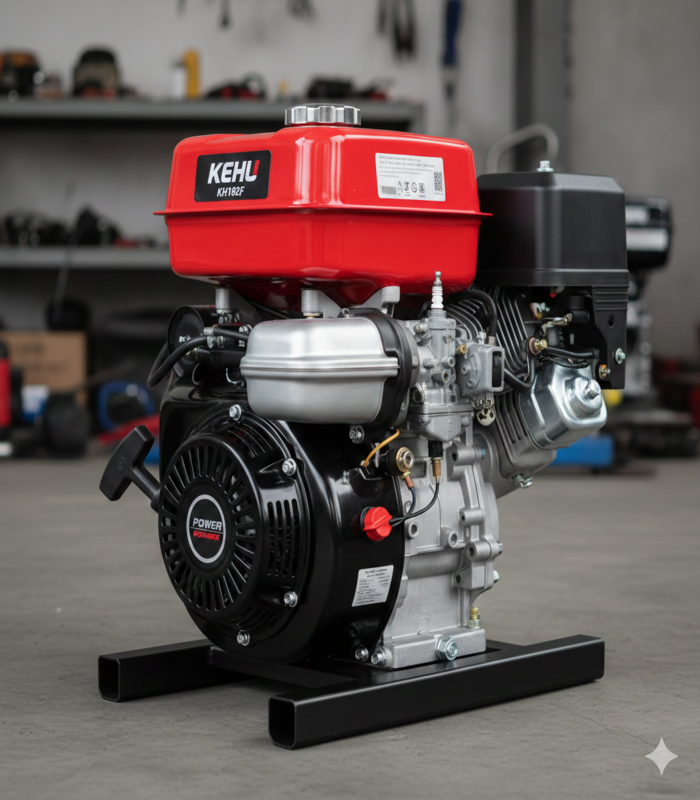

Gasoline Engine Power KH192F

The Kehu KH192F is a high-performance, professional-grade gasoline engine engineered by Changzhou Kaihong Power Machinery Co., Ltd. (KYHON) to deliver reliable prime power for a wide array of industrial and agricultural applications. As part of the renowned Kehu vertical engine series, the KH192F is designed to provide exceptional torque, fuel efficiency, and durability in a compact footprint. Whether serving as the heart of a generator, water pump, or tiller, this engine is built to withstand demanding work environments while requiring minimal maintenance .

Key Technical Specifications

The KH192F utilizes a robust design to maximize displacement and power output, setting it apart from smaller-frame engines.

• Engine Type: Vertical, Single-Cylinder, 4-Stroke, Forced Air-Cooled

• Combustion System: Direct Injection

• Displacement: 499 cc

• Bore x Stroke: 92 mm x 75 mm

• Compression Ratio: 19.5:1

• Rated Power:

  • 7.6 kW (10.3 hp) @ 3000 rpm

  • 8.6 kW (11.7 hp) @ 3600 rpm

• Rotation Direction: Clockwise (from flywheel side)

Performance and Efficiency

The KH192F is tuned for optimal performance across various loads. With a class-leading displacement of 499cc, it provides substantial low-end torque to handle heavy starts for generators and pumps. The engine features an advanced combustion chamber design that ensures clean and efficient fuel burn, reflected in its low fuel consumption of just 265 g/kW-h at rated load . This makes it an economical choice for long-duration operations.

Robust Design and Build Quality

Built for longevity, the Kehu KH192F features a cast-iron cylinder liner for enhanced wear resistance. The forced air-cooling system ensures consistent operating temperatures even in hot ambient conditions, preventing overheating during extended use. The vertical shaft configuration allows for direct coupling to a variety of equipment, reducing power loss and simplifying maintenance .

Fluid Capacities

• Fuel Tank Capacity: 5.5 L (Recommended fuel: 0# summer / -10# winter diesel)

• Lubricating Oil Capacity: 1.65 L (Recommended oil: SAE 10W30, CD grade or above)

Versatile Starting Options

The Kehu KH192F is available in two configurations to suit different user preferences and operational requirements :

• KH192F (Recoil Start): Equipped with a manual recoil starter for simple, straightforward operation in basic applications.

• KH192FE (Electric Start): Features a integrated electric starter motor with a charging coil, allowing for push-button convenience, ideal for generator sets or remote-start applications.

Applications

Thanks to its power density and compact dimensions, the KH192F is the preferred choice for Original Equipment Manufacturers (OEMs) and end-users alike. Common applications include :

• Generator Sets: Powering KYHON’s KHF8500 series generators to produce up to 8.1 kVA of power.

• Welding Units: Providing stable and reliable power for industrial welding equipment.

• Agricultural Machinery: Driving water pumps, tillers, and other farming implements.

Physical Dimensions

• Dimensions (L x W x H): 417 mm x 441 mm x 494 mm

• Net Weight:

  • KH192F (Manual): 50 kg

  • KH192FE (Electric): 55 kg
