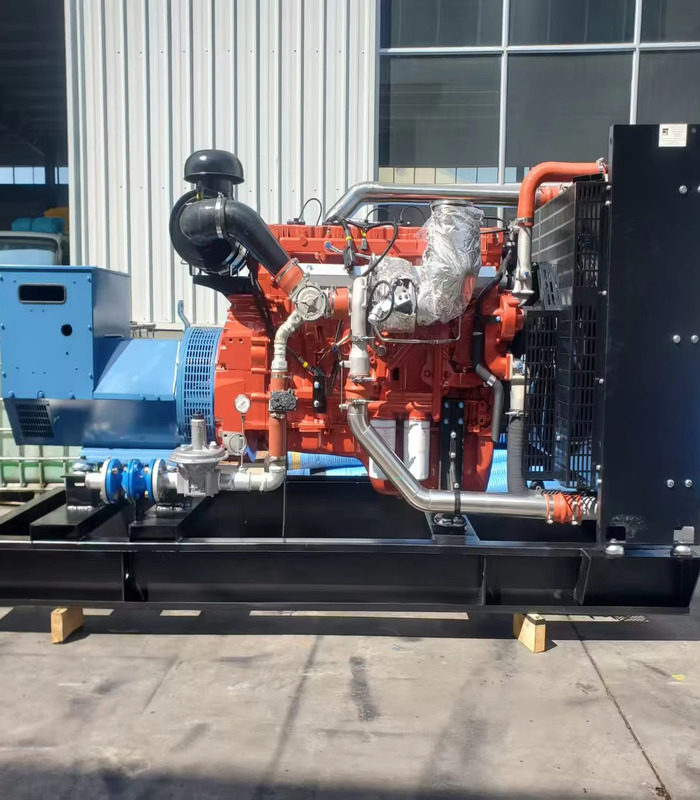

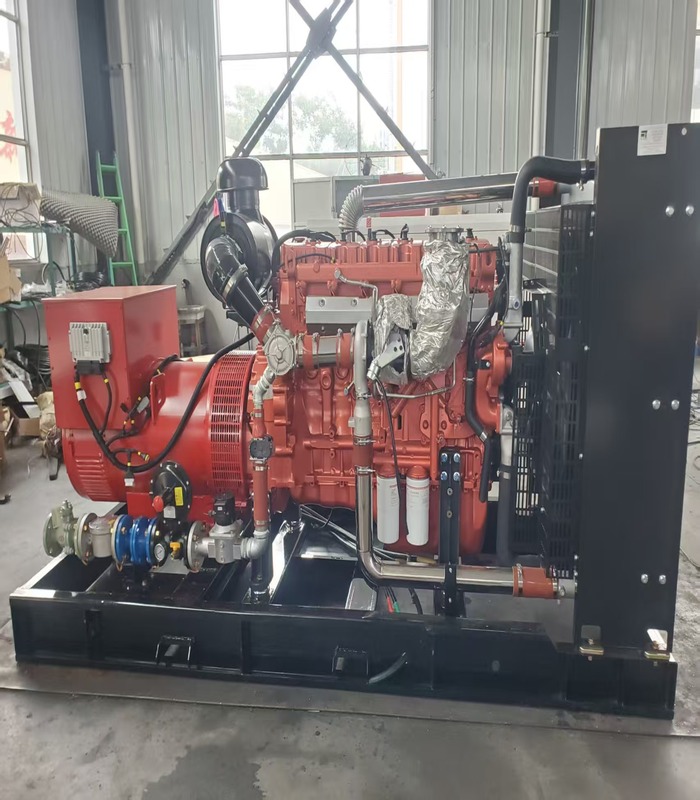

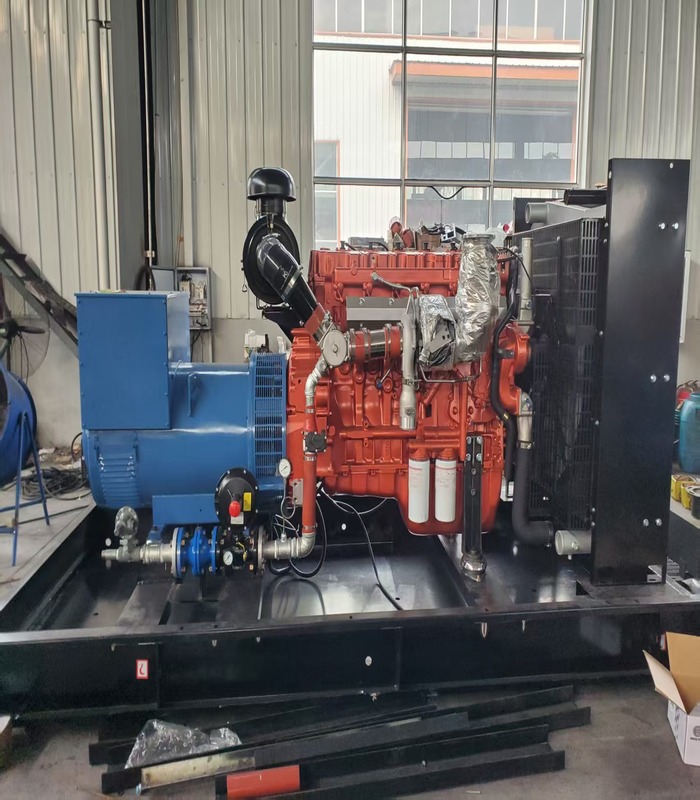

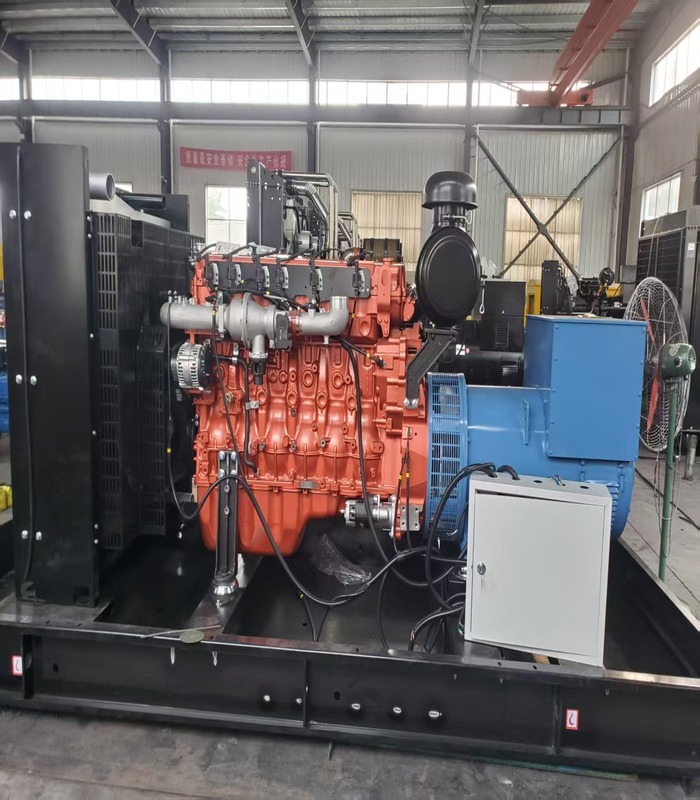

Generator (Yukon Engine) – 50Kw

The Yukon Engine 50kW Generator is a heavy-duty industrial-grade power solution engineered for reliable standby and prime power applications. Designed for commercial, industrial, agricultural, and residential use, it delivers robust performance in demanding conditions, ensuring uninterrupted power during outages or for off-grid operations.

Key Features

Engine & Performance

• Engine Model: Yukon Industrial Series, 4-cylinder liquid-cooled diesel engine.

• Power Output:

  • Standby Power: 50 kW / 62.5 kVA

  • Prime Power: 45 kW / 56.25 kVA (continuous operation)

• Displacement: 3.0L turbocharged diesel engine with direct injection for optimal fuel efficiency.

• Governor: Electronic governor for precise frequency control (±0.25% steady state).

• Cooling System: High-capacity radiator with belt-driven fan for extended runtime in high ambient temperatures.

Alternator & Electrical Performance

• Alternator Type: Brushless, self-exciting, 4-pole revolving field.

• Voltage Configuration: Selectable 120/240V single-phase or 120/208V three-phase (configurable to 480V upon request).

• Voltage Regulation: ±1% (from no-load to full-load).

• Harmonic Distortion: <5% THD for sensitive electronics compatibility.

• Insulation: Class H insulation with varnish dip and bake process for moisture and corrosion resistance.

Control & Monitoring

• Control Panel: Digital Deep Sea / ComAp microprocessor-based controller with automatic start/stop.

• Display: LCD screen showing real-time parameters (voltage, frequency, runtime, fuel level, battery status, etc.).

• Protections:

  • Low oil pressure shutdown

  • High coolant temperature shutdown

  • Over-speed/under-speed protection

  • Overload and short-circuit protection

  • Emergency stop button

• Communication: Optional remote monitoring via GSM/GPRS or Ethernet.

Fuel System & Efficiency

• Fuel Tank: Integrated base tank (up to 130 liters / 34 gallons) for extended runtime.

• Consumption: Approximately 4.5 liters/hour at 50% load (diesel).

• Fuel Filtration: Dual-stage fuel filtration with water separator for harsh environments.

Enclosure & Design

• Construction: All-steel canopy with acoustic insulation (sound-attenuated option available).

• Sound Level: As low as 68 dB(A) at 7 meters (with soundproof enclosure).

• Weatherproofing: IP23 rating for outdoor installation (protection against rain and debris).

• Mounting: Integrated skid base with vibration isolators.

Maintenance & Serviceability

• Service Access: Large removable panels for easy access to filters, oil dipstick, and coolant ports.

• Service Intervals: 250 hours for oil/filter changes (under standard conditions).

• Battery: Maintenance-free 12V battery with built-in charger.

Applications

• Commercial: Shopping centers, office buildings, hospitals, data centers.

• Industrial: Manufacturing plants, construction sites, mining operations.

• Agricultural: Irrigation systems, grain drying, livestock facilities.

• Residential: Large estates, backup power for entire home systems.

• Municipal: Emergency response centers, water treatment plants.

Technical Specifications

Standard Inclusions

• Digital control panel with automatic start/stop

• Integrated fuel tank with gauge

• Battery charger and cables

• Oil and fuel filters

• Tool kit and user manual

• Vibration isolators and skid base

Optional Accessories

• Weatherproof & Soundproof Enclosure

• Automatic Transfer Switch (ATS)

• Remote Monitoring Kit

• Cold-Weather Kit (block heater, battery warmer)

• Exhaust Flex Pipe & Silencer

• Mobile Trailer Mount (for portable applications)

Warranty & Support

• Standard Warranty: 3 years or 2000 hours (whichever comes first) on engine and alternator.

• Extended Warranty: Available up to 5 years.

• Global Service Network: Authorized service centers and 24/7 technical support.

Compliance & Certifications

• Emissions: EPA Tier 4 Final / EU Stage V compliant (varies by region).

• Safety Standards: ISO 8528, CSA, CE certified.

• Grid Compatibility: Meets IEEE 1547 for interconnection standards.

Why Choose the Yukon 50kW Generator?

• Reliability: Built with industrial-grade components for 24/7 operation.

• Fuel Efficiency: Advanced turbocharging and injection systems reduce operational costs.

• Low Maintenance: Long service intervals and easy-access design.

• Quiet Operation: Sound-attenuated enclosure ideal for noise-sensitive areas.

• Scalability: Parallel capable (with optional module) for increased power needs.
