Products Advantage

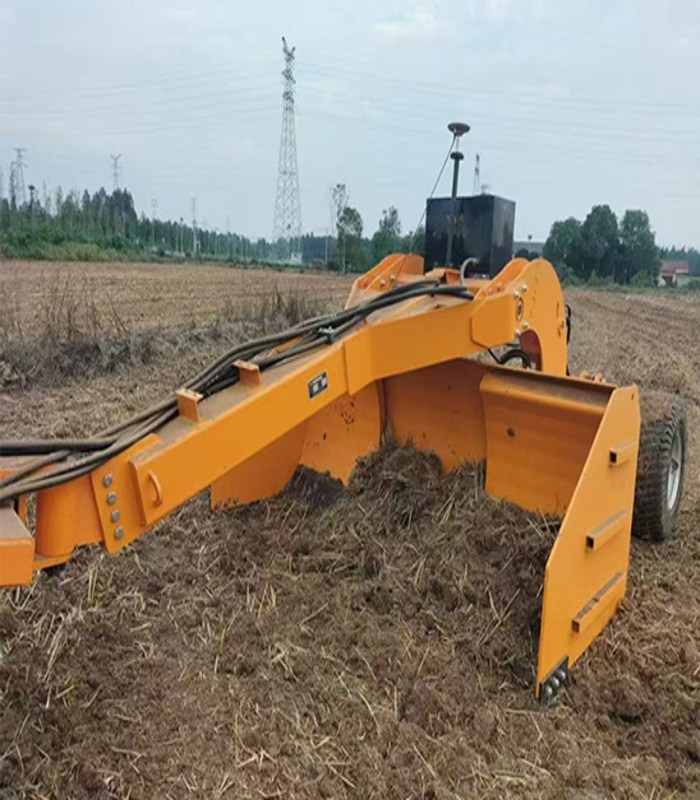

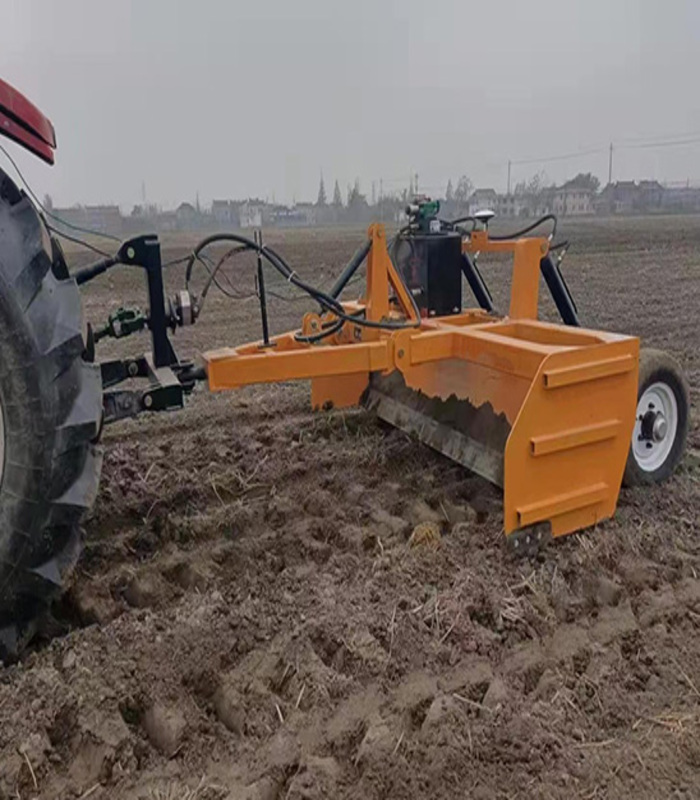

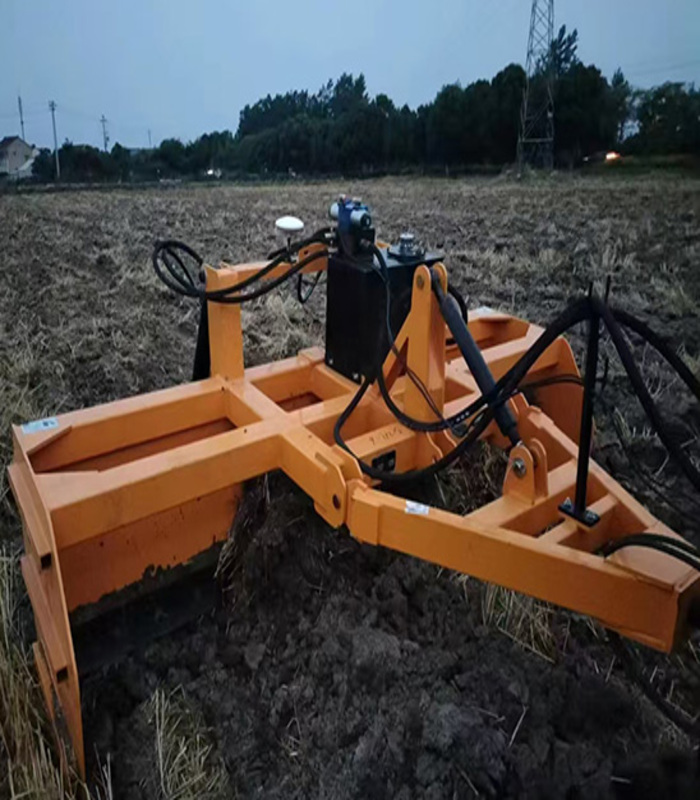

The laser land leveler is mainly used for leveling operations on wasteland and sloped land, reducing irrigation ditches, improving land utilization, and creating favorable conditions for mechanized operations. The machine is primarily composed of a laser transmitter and receiver control unit, a hydraulic system, and a leveling blade. With its operation, the ground leveling accuracy can reach within 2 cm, and it can save over 30% of water compared with traditional irrigation.
Working conditions:Â land reclamation, renovation of old fields, leveling of new fields, slope-to-terrace conversion, paddy field leveling, dry field leveling, and similar applications.
Reinforced rubber tires:Increased contact area with the ground, less slippage, and reduced risk of tire bursts.
The working width can be adjusted according to clients requirement.
Reinforced drawbar structure to prevent breakage and extend service life.
Products Parameters
| Main performance and technical specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Name | 12PW-250C laser land leveler | ||||||||
| Matched Tractor Rated Power（kw) | ≥52.22 | ||||||||
| Satellite Instrument | BN-323 | ||||||||
| GPS Output Accuracy | Horizontal ±1, Vertical ±2 | ||||||||
| Hydraulic Output Accuracy | 2.5 | ||||||||
| Satellite Signal | BeiDou | ||||||||
| Transmission Range(km) | 3-5 | ||||||||
| Operating Voltage(v) | DC12 | ||||||||
| Total Weight(kg) | ≈900 | ||||||||
| Working Width(mm) | 2500 | ||||||||
| Cutting Depth(mm) | 35 | ||||||||
| Lifting Height of Grading Blade(mm) | 230 | ||||||||
| Blade Capacity | 1.0-1.2 | ||||||||
| Hydraulic Cylinder | / | ||||||||
| Quantity | 2 | ||||||||
