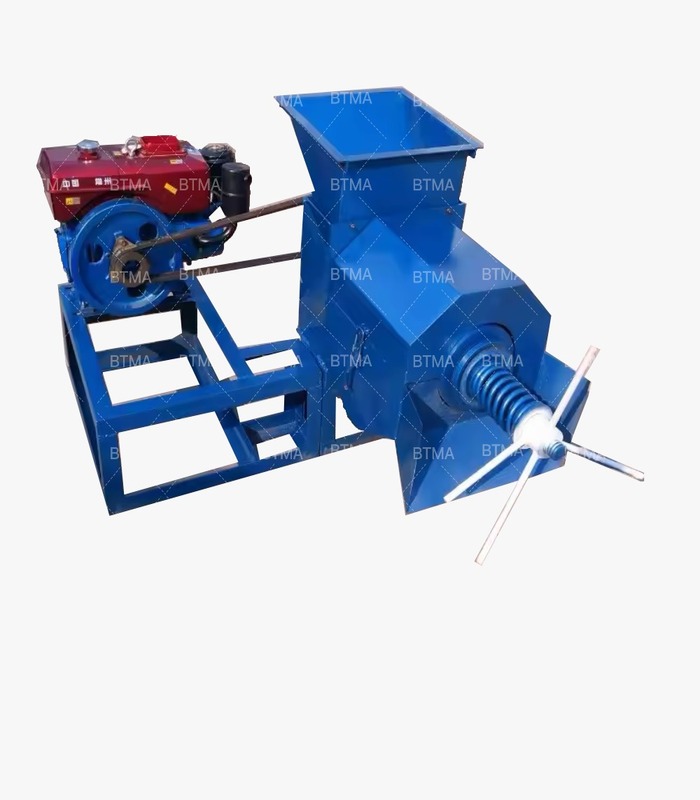

Palm Fruit Oil Press Machine

Maximize Your Palm Oil Production with Our Advanced Oil Press Machine

Unlock the full potential of your palm fruit harvest. Our professional Palm Fruit Oil Press Machine is engineered for processors who demand high oil extraction rates, operational reliability, and superior oil quality. Designed to handle both Fresh Fruit Bunches (FFB) and sterilized fruit, this robust press is the core of an efficient milling operation, transforming your raw material into profitable, golden-red palm oil.

Precision Engineering for Superior Performance

This isn’t just a press; it’s a complete extraction system. It integrates a digesting and pressing mechanism to ensure every fruitlet releases its maximum oil content. The heavy-duty gearbox and reinforced screw shaft deliver consistent pressure, effectively separating oil from the palm fruit mesocarp.

Key Features & Technical Advantages

• High Extraction Efficiency: Advanced screw press design achieves up to 22-23% oil yield from well-prepared fruit, maximizing your profitability.

• Robust & Durable Construction: Built with high-grade alloy steel and wear-resistant components for a long service life, even under continuous, heavy-duty operation.

• Optimized Oil Clarification System: Includes a dual-stage filtering screen and sedimentation tank to separate crude oil from sludge and solids, delivering cleaner oil for downstream purification.

• Automated & User-Friendly: Features an automatic cake outlet and adjustable pressure control, reducing manual labor and ensuring consistent operation.

• Energy Efficient Design: Optimized motor and drive system reduce power consumption per ton of processed fruit, lowering your operational costs.

• Versatile Processing: Effectively processes sterilized and digested palm fruit, adapting to various mill setups and batch sizes.

Technical Specifications (Model PFPM-100)

• Capacity: 1 – 1.5 Tons of FFB per hour

• Power: 18.5 kW Electric Motor (or Diesel Engine option)

• Oil Yield: ≥ 22% (dependent on fruit quality)

• Screw Speed: Adjustable, 30-40 rpm

• Heating System: Optional steam jacket for optimal oil viscosity

• Dimensions: 2800 x 1200 x 1600 mm

Who Is This Machine For?

This machine is the ideal solution for:

• Small to Medium-Scale Palm Oil Mills

• Agricultural Cooperatives & Plantation Owners

• Start-up Processing Plants

• Value-Addition Agro-Processors
