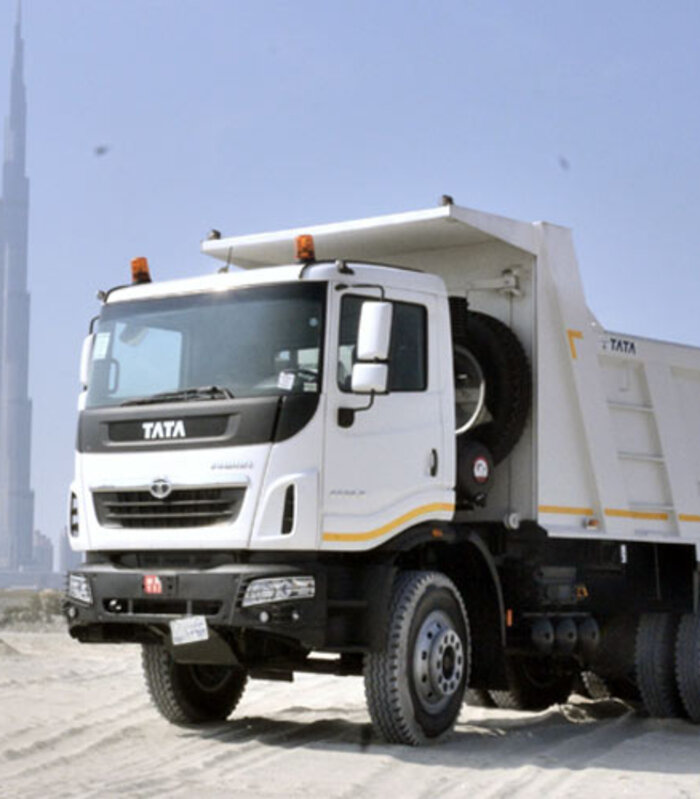

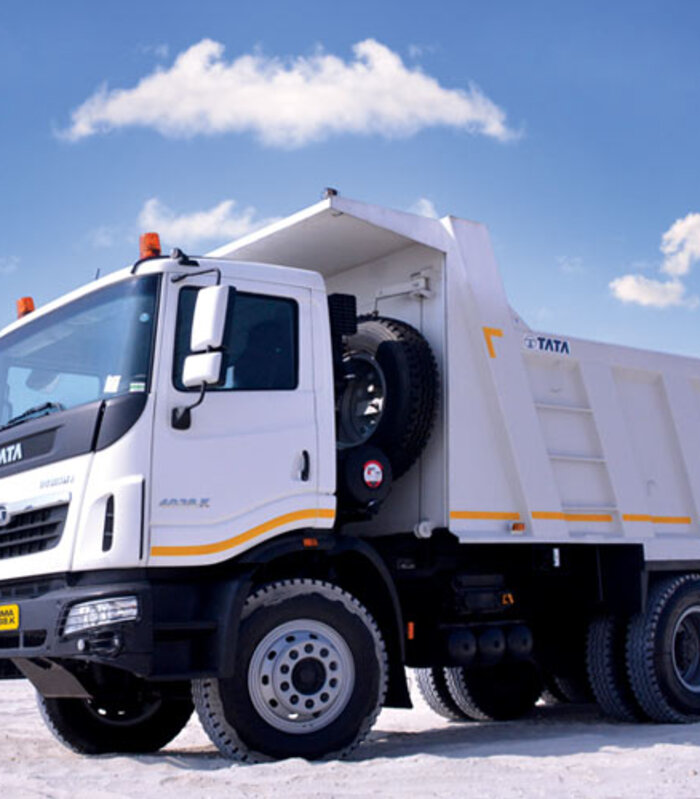

TATA Prima 40 Tonner Tipper Truck
TATA Prima 40 Tonner Tipper Truck - Image 2

TATA Prima 40 Tonner Tipper Truck

Add to wishlist
Add to compare
15 People watching this product now!

Fast Shipping

Quality products

24/7 Support

Delivery

Reviews (0)
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “TATA Prima 40 Tonner Tipper Truck”

Your email address will not be published. Required fields are marked *

Description

The Tata Motors Prima trucks have been built with best-in-class auto technology to provide a world-class trucking experience. Engineered for performance in the toughest conditions, the Prima range also has an array of features for driving comfort such as ergonomic controls, seat adjustment, minimum noise emissions and HVAC.

Download Specification

SPECIFICATIONS Prima 4038.K
ENGINE
Engine type Cummins ISLe 375 Euro-III
Engine capacity (cc) 8850
Max engine output 370 BHP at 2100 rpm
Bore / stroke 114 mm / 144.5 mm
Max engine torque 1550 Nm at 1200 – 1400 rpm
TRANSMISSION AND STEERING
Clutch 430 mm, organic
Gearbox Eaton ES15409-DD
No. of gears 9
Crawler 14.39
1st 10.04
2nd 7.11
3rd 5.05
4th 3.71
5th 2.71
6th 1.92
7th 1.36
8th 1
Reverse 14.41
FRAME
Type Ladder type heavy duty frame of channel section
Chassis 320 mm x 90 mm x 8 mm
Frame width Front – 950, Rear – 850
SUSPENSION
Front Parabolic – 7.5T
Rear Bogie – 48T
BRAKES
Service brake Dual circuit full air S-CAM brake with ABS
Brake area 410 x 220
Engine exhaust brake Jake Brake, Auto Slack Adjuster
WHEELS AND TYRES
Tyre size 12R24 20PR
Wheel rim 8.50-24
Rear axle RA 210 – Two Stage Reduction
Final drive ratio 4.92
Rear axle weight Front – 16T, Rear – 16T
Front axle I Beam – 7.5T
DIMENSIONS
Wheel base 4570
TCD 18350
Front track 2052
Rear track 1900
Max. width 2590
Overall height 3682
Box body options (CBM) 18
WEIGHTS
Max. GCW 28500
Max. FAW 7500
Max. Raw 21000
Tare Weight 9530
PERFORMANCE
Grade ability 40% / 65%
Top Speed(kpmph) 95
CABIN
Cabin type 4 point suspended Prima Day Cabin
AC Standard
