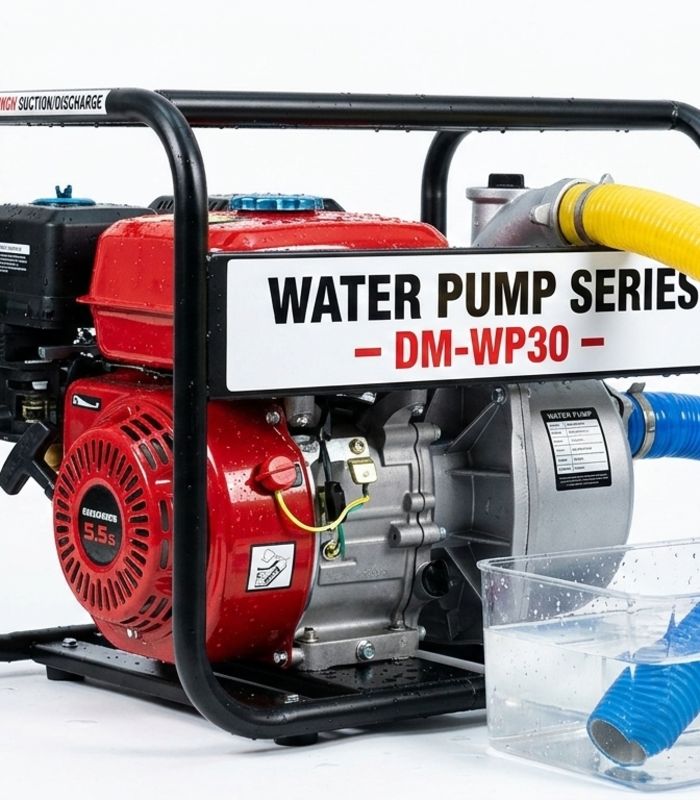

Water Pump Series – DM-WP30

Extended Reach for Deep Water Sources

The DM-WP30 is a specialized water pump engineered for applications requiring exceptional discharge height. While maintaining a 1-inch port size, this model features an enhanced pump lift of 30 meters, making it the ideal solution for pumping water to elevated storage tanks, high-altitude irrigation zones, or multi-story building sites where pressure and reach are paramount.

Key Specifications

• Engine Type: Two Stroke, Air-Cooled

• Displacement: 51.2cc

• Output Power: 1.4kW / 1.9Hp

• Fuel Tank Capacity: 1000ml

• Inlet/Outlet Diameter: 25mm (1.0 inch)

• Max Flow Rate: 7m³/h

• Max Pump Lift (Head): 30m

• Max Suction Lift: 7m

Product Overview

The DM-WP30 takes the reliable platform of the WP10 and optimizes it for vertical performance. If you need to push water uphill or to the top of a tall structure, this pump provides the extra head pressure required. It combines the fuel efficiency and portability of a small-frame pump with the lifting power of a much larger machine.

Performance & Capability

• High-Head Performance: With a maximum head of 30 meters, it excels at pumping water to high-altitude tanks or terraced fields.

• Deep Suction: Maintains a strong suction lift of 7 meters, allowing it to draw from deep wells or low-lying sources.

• Efficient Flow: Delivers a steady 7m³/h flow rate, ensuring consistent water supply even at higher elevations.

Design & Build Quality

• Heavy-Duty Impeller: Features an impeller designed specifically for high-pressure applications.

• Durable Seals: Equipped with robust mechanical seals to prevent leaks and ensure long life under pressure.

• Compact Footprint: Easy to store and transport, yet powerful enough for high-demand tasks.

Applications

• High-Altitude Irrigation: Pump water to hillside crops or mountain gardens.

• Water Tower Filling: Ideal for filling elevated storage tanks for residential or agricultural use.

• Multi-Story Construction: Supply water to upper floors on building sites.

• Pressure Boosting: Used in systems where mains pressure is insufficient.
