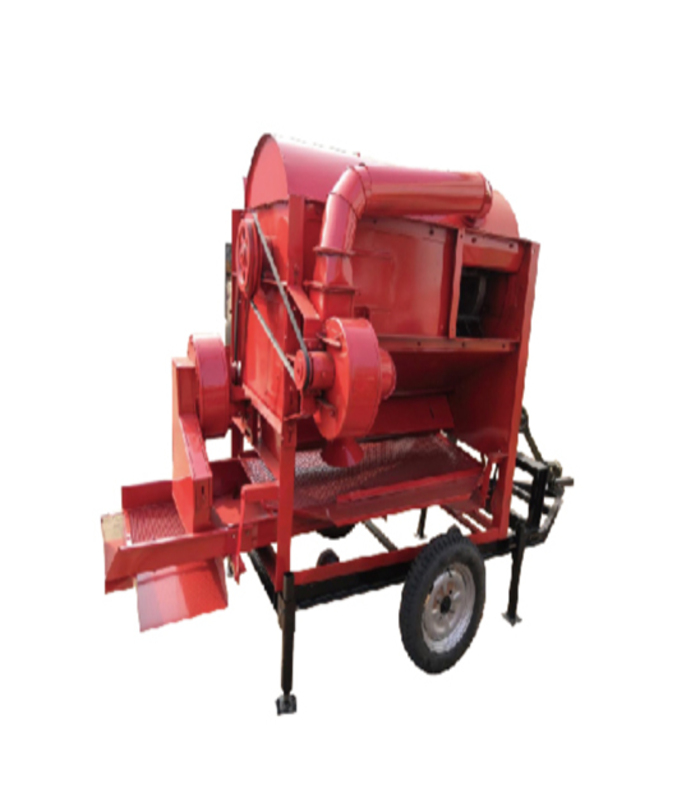

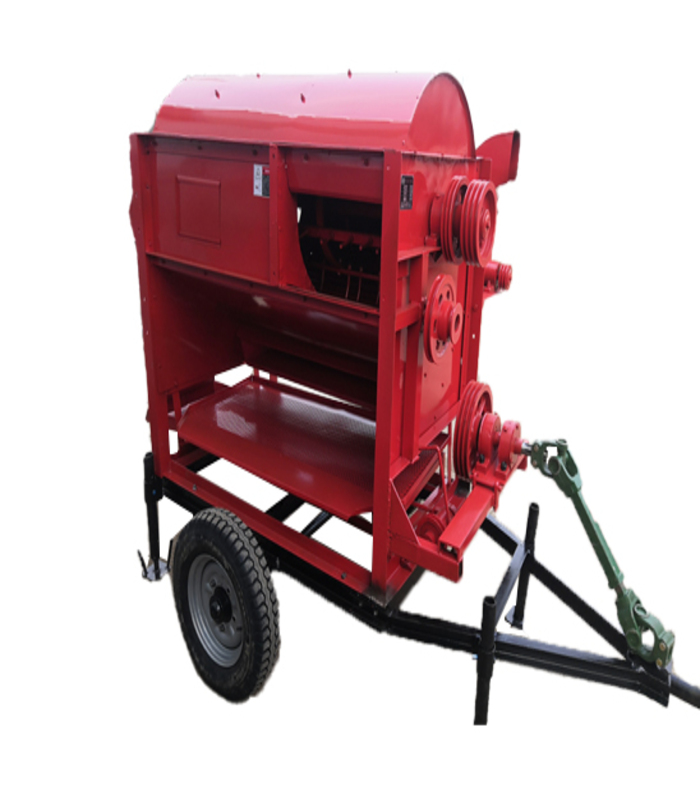

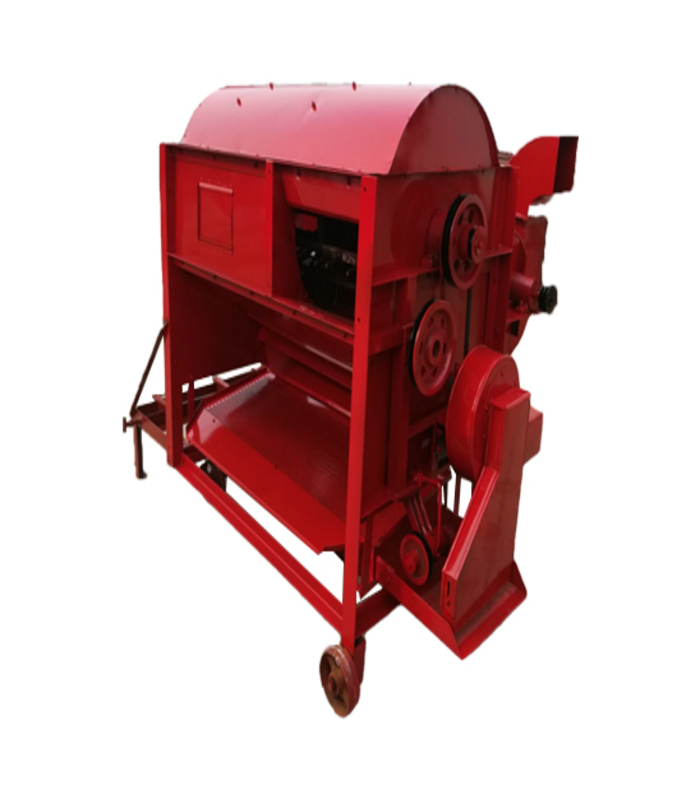

The 5TD series of threshers is mainly for rice, wheat, soybeans, and similar operations. The models are 5TD-50, 5TD-70, 5TD-100, 5TD-125. It is driven by an electric motor or gasoline engine, diesel engine as well as tractor.
5TD series threshing machine is combined with the function of threshing, wind selection, and screening operations, such as wheat material, It separates the grain with wheat straw, wheat bran, and wheat residue one time. It is widely used in rural areas, plains, Mid-levels, hills, and other wheat, rice rice-producing areas for its reasonable structure and high efficiency.
Products Parameters
| Chalion Main performance and technical specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Unit | 5TD-125 | 5TD-100 | 5TD-70 | 5TD-50 | ||||||||
| Out dimension
(L*W*H) |
mm | 2400×2490×1530 | 2300×2000×1500 | 1070×2060×1340 | 1400×900×1050 | ||||||||
| Matched power
(electric motor) |
Kw | 11-13 | 7.5-11 | 7.5 | 2.2-3 | ||||||||
| Matched power
(diesel engine） |
hp | 24-25 | 18-20 | 12-15 | 6-8 | ||||||||
| Total weight | kg | 450 | 420 | 260 | 150 | ||||||||
| Work efficiency | Kg/h | 1500-2000 | 1000-1500 | 700-1000 | 700-1000 | ||||||||
| Roller rotation speed | r/min | 1000 | 1060 | 1200 | 1400 | ||||||||
| Fan rotation speed | r/min | 2500 | 2400 | 2100 | |||||||||
| Frequency of
vibrating screen |
time/
min |
     240 |  320 |      320 | 580 | ||||||||
| Total loss rate |   % | ≤1.5 |                    ≤3.0 | ||||||||||
| Total damage rate |   % |           ≤1.5 | |||||||||||
