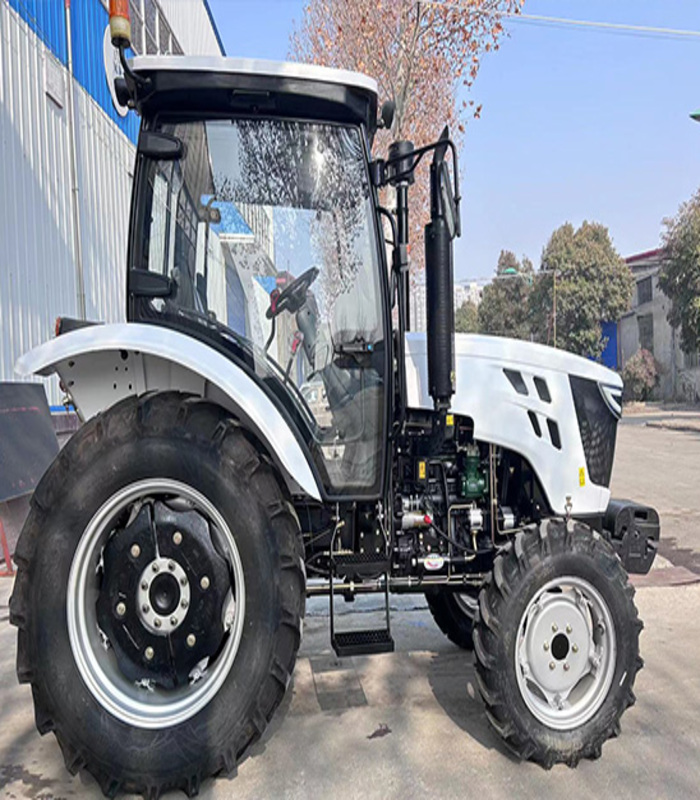

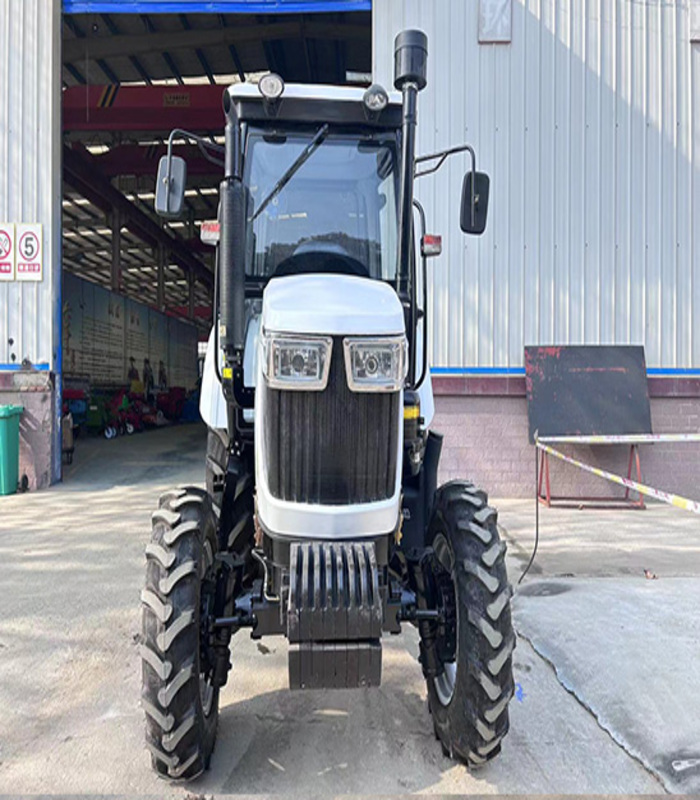

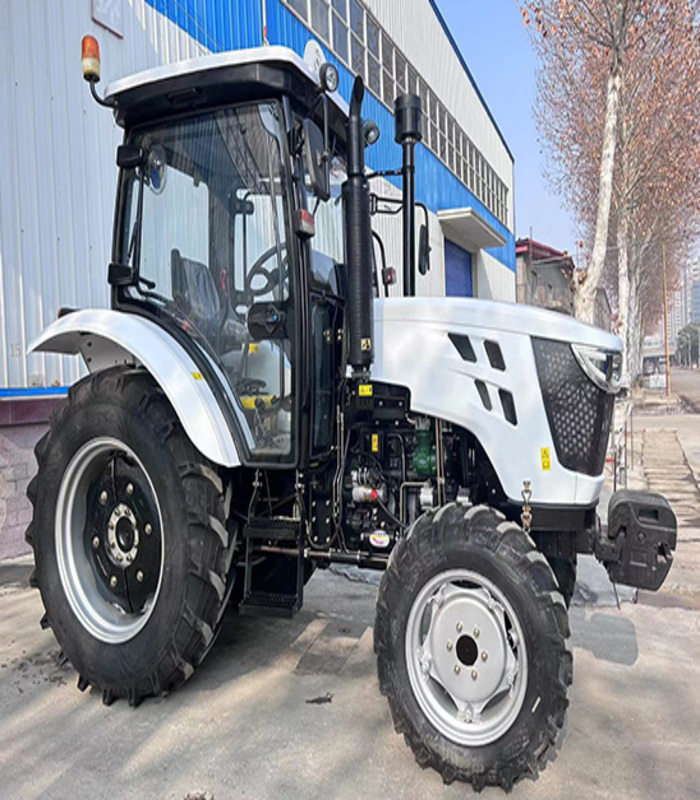

QB series 90HP Wheeled Tractor belongs to middle horsepower, adopts YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gearbox, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Hot Sale Chalion 90 HP Tractor Agriculture Small 4×4 Compact Tractor With Loader And Backhoe Agricultural Tools Price.
Products Parameters
| 90HP | ||||
|---|---|---|---|---|
| Model | QLN-900 | QLN-904 | ||
| Engine | Rated power(kW) | 66.2 | ||
| Type | Water-cooled, in-line, four-stroke, direct injection | |||
| Rotation speed(r/min) | 2300 | |||
| Dimension | Wheel drive | 2WD | 4WD | |
| Minimum using weight (kg) | 3075 | 3200 | ||
| Overall dimension(mm) | 4285*1915*2750 | |||
| Wheel tread(mm) | Front wheel | 1400 | 1460 | |
| Rear wheel | 1530 | |||
| Wheelbase(mm) | 2273 | 2300 | ||
| Minimum ground clearance(mm) | 430 | 340 | ||
| Gearbox | 12F+12R | |||
| Tire | Front tire | 6.5-20 | 8.3-24 | |
| Rear tire | 14.9-30 | |||
| Steering type | Hydraulic power steering | |||
| Working device | PTO shaft speed (r/min) | 540/760 | ||
| Lift capacity at 610mm behind lift ends(KN) | 20 | |||
| Suspension type | Categoryâ…¡3-point linkage | |||
